前言
最近的瓜是又大又圆,作为前排吃瓜群众中的一员,自然要有独特的吃瓜方式,自己做个微博热搜实时平台,一个瓜都漏不掉
目录
前言
结果展示
一、定位爬取的数据内容
二、编写Python爬虫脚本
三、存储到Mysql数据库
四、编写简单的服务器端PHP脚本
五、前端Html5+Echarts可视化
六、写在最后

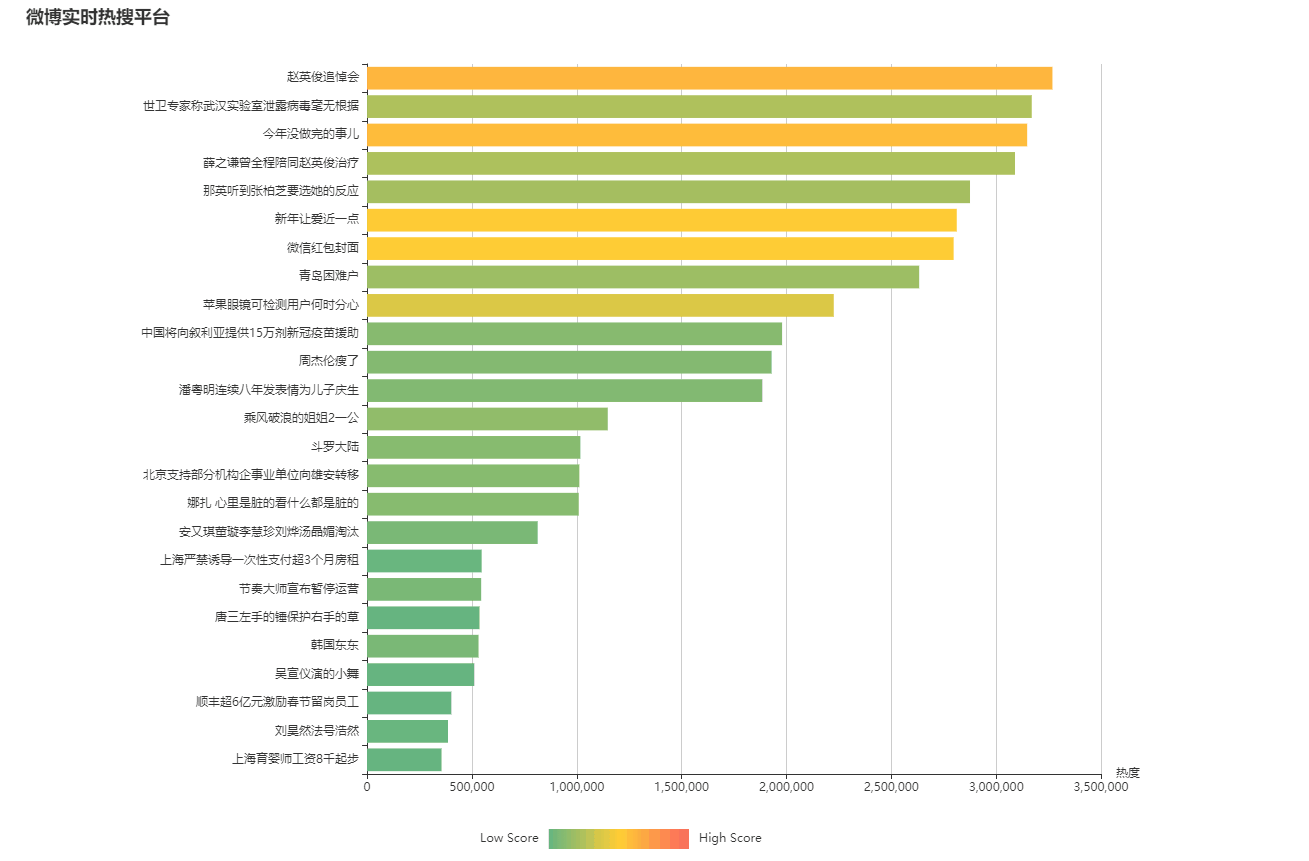

结果展示

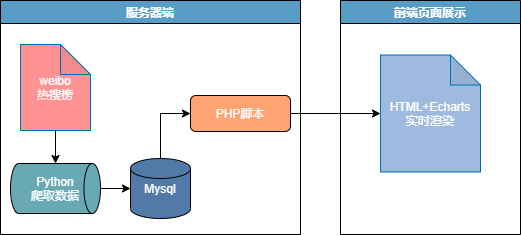

实时平台简单架构图
一、定位爬取的数据内容

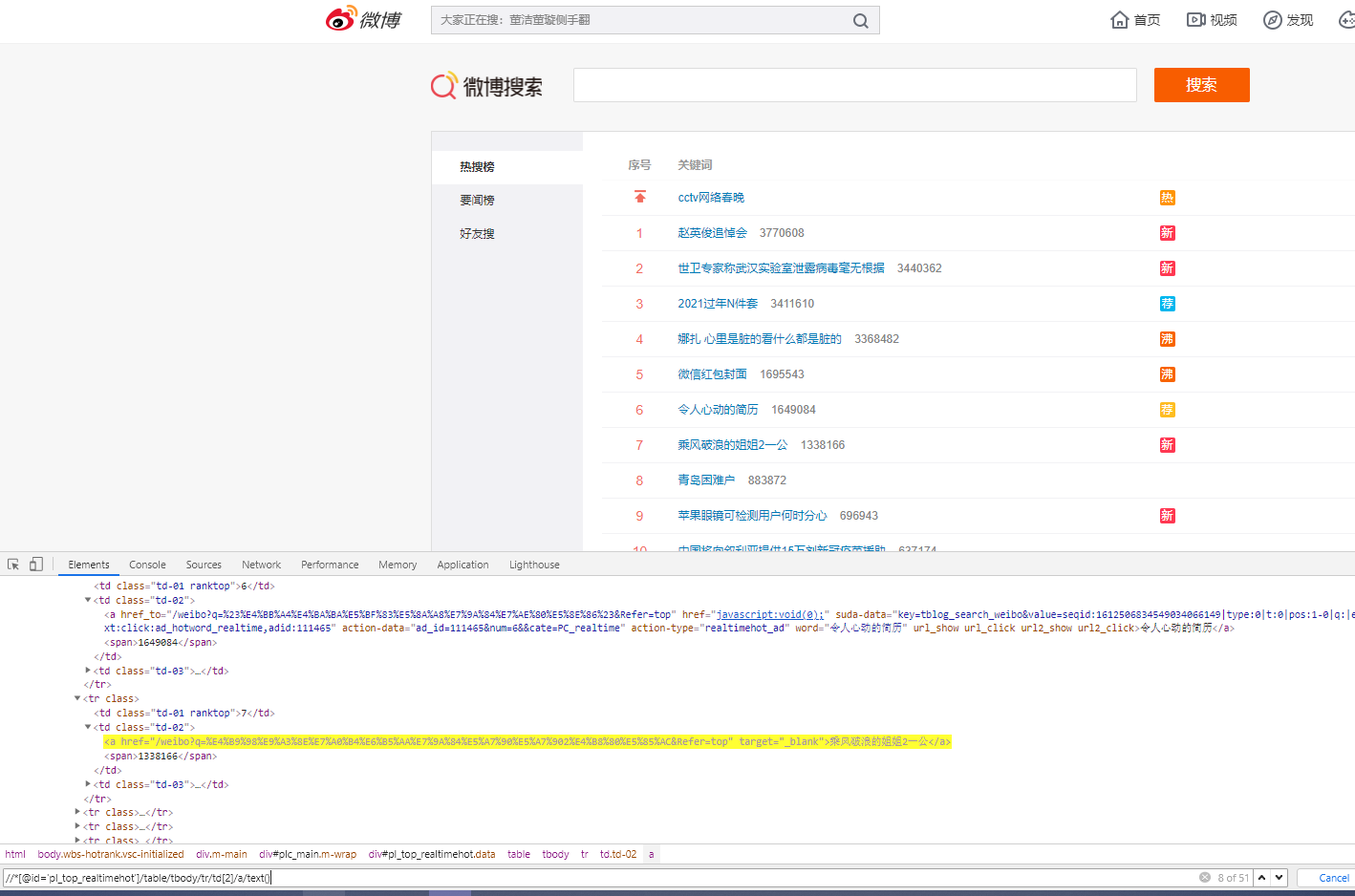

微博热搜榜单的数据都很有规律,在一个table标签中放着,很方便我们写xpath爬取,我们只要获取热搜标题,热搜网址,热搜热度值就可以了
二、编写Python爬虫脚本
本次的python爬虫使用的是requests库进行发送请求,再将网页返回,随后使用etree和xpath进行数据解析。我把他们都封装成了函数,这样更加方便复用,这里已经把相应的xpath规则写好了。顺便给它定了个时,让它每间隔一会就爬取一次,可以自己修改时间,虽然微博热榜的防爬机制并没有很严,但也不要改得太小,以免被误杀
import requests
import timefrom lxml import etreedef getHTMLText(url):""" 获取微博网页数据 """try:# 记得加上请求头headers = {'User-Agent':'Mozilla/5.0 (Windows NT 6.3; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36'}r = requests.get(url,headers = headers)""" 如果状态码不是200 则会引起HTTPerror异常 """r.raise_for_status()# 编码转换r.encoding = r.apparent_encodingreturn r.textexcept:return "产生异常"if __name__ == "__main__":url = "https://s.weibo.com/top/summary?cate=realtimehot"# 定时任务5swhile(True):web_data = getHTMLText(url)html = etree.HTML(web_data)#热搜标题html_title = html.xpath("//*[@id='pl_top_realtimehot']/table/tbody/tr/td[2]/a/text()")#热搜链接html_url = html.xpath("//*[@id='pl_top_realtimehot']/table/tbody/tr/td[2]/a/@href")#热度html_hot = html.xpath('//*[@id="pl_top_realtimehot"]/table/tbody/tr/td[2]/span/text()')#输出到控制台,方便查看for i in range(len(html_hot)):print(html_title[i+1]," ",r'https://s.weibo.com'+html_url[i+1]," ",html_hot[i])time.sleep(5)

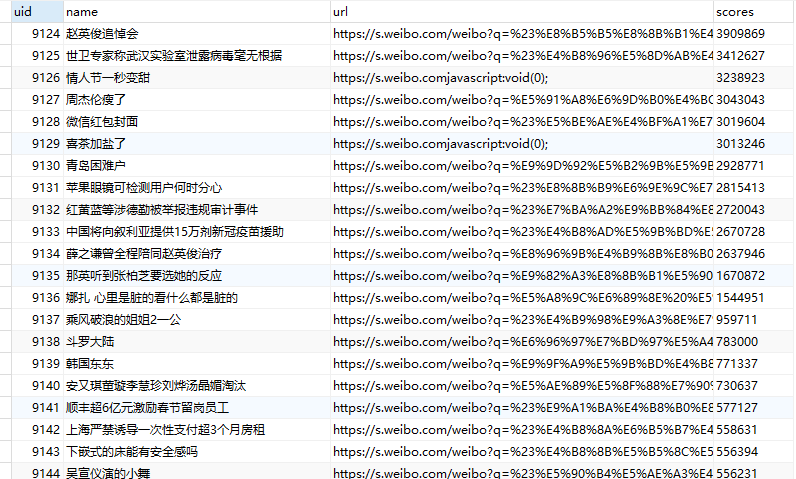

查看爬取结果:
结果非常的Amazing啊,很符合我们的预期,实际上我们只要前二十五条热搜就可以了,不然可视化页面有点装不下
三、存储到Mysql数据库
因为考虑到这样一个实时数据平台放在本地上一直跑也不是办法,于是选择让python脚本在服务器里跑,然后把爬取到的数据存到服务器数据库,最后通过PHP响应前端的Ajax请求,将数据返回给前端进行可视化展示。这样我们只需要打开网址,随时都能看到自己做的这个小项目啦,具体服务器部署并不难,在这里就不再赘述了。
我这次选用的是Mysql数据库,比较顺手,其实也可以选择使用MongoDb等其他数据库进行存储数据
简单数据库表设计
CREATE TABLE `hot_list` (`uid` int(11) NOT NULL AUTO_INCREMENT,`name` varchar(255) DEFAULT NULL,`url` varchar(255) DEFAULT NULL,`scores` varchar(20) DEFAULT NULL,PRIMARY KEY (`uid`)
) ENGINE=InnoDB AUTO_INCREMENT=13970 DEFAULT CHARSET=utf8;
在python上连接使用mysql,需要pip install pymysql模块,然后记得配置下自己的数据库
import requests
import pymysql
import timefrom lxml import etree""" 爬取微博热搜榜 """def getHTMLText(url):""" 获取微博网页数据 """try:headers = {'User-Agent':'Mozilla/5.0 (Windows NT 6.3; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/63.0.3239.132 Safari/537.36'}r = requests.get(url,headers = headers)""" 如果状态码不是200 则会引起HTTPerror异常 """r.raise_for_status()r.encoding = r.apparent_encodingreturn r.textexcept:return "产生异常"def insert(value):""" 将数据插入mysql """sql = "INSERT INTO hot_list(name,url,scores) values(%s,%s,%s)"try:cursor.execute(sql,value)db.commit()print('插入数据成功')except:db.rollback()print("插入数据失败")def insert(value):""" 将数据插入mysql """sql = "INSERT INTO hot_list(name,url,scores) values(%s,%s,%s)"try:cursor.execute(sql,value)db.commit()print('插入数据成功')except:db.rollback()print("插入数据失败")def delete(mycursor):""" 删除mysql的数据 """sql = "DELETE FROM hot_list"mycursor.execute(sql)if __name__ == "__main__":# 数据库配置dbConfig = {'host':'localhost','user':'root','password':'root','db':'data'}url = "https://s.weibo.com/top/summary?cate=realtimehot"# 连接mysqldb = pymysql.connect(host = dbConfig['host'], user=dbConfig['user'], password=dbConfig['password'], port=3306, db=dbConfig['db'])cursor = db.cursor()# 定时任务5swhile(True):web_data = getHTMLText(url)# print(web_data)html = etree.HTML(web_data)html_title = html.xpath("//*[@id='pl_top_realtimehot']/table/tbody/tr/td[2]/a/text()")html_url = html.xpath("//*[@id='pl_top_realtimehot']/table/tbody/tr/td[2]/a/@href")html_hot = html.xpath('//*[@id="pl_top_realtimehot"]/table/tbody/tr/td[2]/span/text()')# 删除数据库原有数据delete(cursor)for i in range(len(html_hot)):print(html_title[i+1]," ",r'https://s.weibo.com'+html_url[i+1]," ",html_hot[i])value = (html_title[i+1],r'https://s.weibo.com'+html_url[i+1],html_hot[i])insert(value)time.sleep(5)db.close()
四、编写简单的服务器端PHP脚本
其实Python也可以在服务器上进行监听,不过还是想让他们各司其职,让PHP来接收请求
这里还可以继续优化,因为这次没有使用数据库连接池,PHP就会反复连接和断开mysql数据库,比较耗费资源,建议自己加上个数据库连接池要更好一些
<?phpheader("Access-Control-Allow-Origin: *");function getData()
{$servername = "localhost";$username = "root";$password = "root";$db_name = "data";// 创建连接 可以改用连接池 mysql_pconnect("localhost", "root", "123456");$conn = new mysqli($servername, $username, $password,$db_name);// 检测连接if ($conn->connect_error) {die("连接失败: " . $conn->connect_error);} $sql = "select * from hot_list ORDER BY uid asc limit 25";$result = $conn->query($sql);$res = array();$res[] = [0=>"score",1=> "热度", 2=>"titleName"];if ($result->num_rows > 0) {header("Content-Type: application/json; charset=UTF-8");while($row = $result->fetch_array()) {// 将数据库数据组装成前端能用的格式$temp = array();$score = ($row['scores']/100000)*rand(1, 2);if($score<10){$temp[] = ($row['scores']/100000)*rand(2, 3);}else{$temp[] = $score;}$temp[] = $row['scores'];$temp[] = $row['name'];$res[] = $temp;}} $json = json_encode($res,JSON_UNESCAPED_UNICODE); $conn->close();echo $json;
}getData();
五、前端Html5+Echarts可视化
简单的使用jQuery来发送ajax请求,再用echarts可视化数据,这里都使用CDN的方式导入,更加方便使用
如果想做些其他的可视化的话,可以自己来Echarts官网逛逛
<!DOCTYPE html>
<html><head><meta charset="utf-8" /><title>微博热搜实时平台</title><!-- 引入 echarts.js和jqery.js --><script src="https://cdn.bootcss.com/echarts/4.2.1-rc1/echarts.min.js"></script><script src="https://apps.bdimg.com/libs/jquery/2.1.4/jquery.min.js"></script><style type="text/css">.bg {display: flex;justify-content: center;align-items: center;}</style></head><body><!-- 为ECharts准备一个具备大小(宽高)的Dom --><div class="bg"><div id="main" style="width: 1200px; height: 850px"></div></div><script type="text/javascript">// 基于准备好的dom,初始化echarts实例var myChart = echarts.init(document.getElementById("main"));// 指定图表的配置项和数据option = {dataset: {//数据放入这里面source: [//第一行要留着["score", "热度", "titleName"],[89.3, 58212, "Matcha Latte"],[57.1, 78254, "Milk Tea"],[74.4, 41032, "Cheese Cocoa"],[50.1, 12755, "Cheese Brownie"],[89.7, 20145, "Matcha Cocoa"],[68.1, 79146, "Tea"],],},title: {text: "微博实时热搜平台",},grid: { containLabel: true },xAxis: { name: "热度" },yAxis: { type: "category", inverse: true },visualMap: {orient: "horizontal",left: "center",min: 10,max: 100,text: ["High Score", "Low Score"],// Map the score column to colordimension: 0,inRange: {color: ["#65B581", "#FFCE34", "#FD665F"],},},series: [{type: "bar",encode: {// Map the "amount" column to X axis.x: "热度",// Map the "product" column to Y axisy: "titleName",},},],};function changeData() {let url = "http://localhost:8012/crawlServer.php";$.get(url, {}, function (data, status) {console.log(data, status);if (status == "success") {option.dataset.source = data;}});myChart.setOption(option);}setInterval("changeData()", 3000);</script></body>
</html>
六、写在最后
瓜虽好,可不要贪多哟~
这个小项目的源码已经上传至github,有兴趣的小伙伴可以拉取到本地玩耍哦
要是觉得还不错,不妨点个star~(抱拳感谢)
