前言

接上一篇Mybatis学习（二）：Mybatis入门教程和简单应用

本篇讲解Mybatis传统XML配置开发、注解开发、缓存使用和插件使用

一、Mybatis传统XML配置开发

在父级项目下新创建一个模块mybatis-learn-dev，可参考我的仓库：mybatis-learning

之前的demo开发已经简单讲解了Mybatis基于XML配置的增删改查功能，本篇继续讲解其他高级功能的使用。

1.1 一对一查询

以博文和作者为例子，一篇博文对应一个作者。查询一篇博文同时查询出作者的信息。

1.1.1 新建作者实体类—Author

public class Author {private int id;private String username;private String password;private String email;// 省略get和set方法
}

1.1.2 新建博文实体类—Blog

public class Blog {private int id;private int authorId;private String title;// 省略get和set方法
}

1.1.3 新建BlogMapper接口类

public interface BlogMapper {List<Blog> findAll();
}

1.1.4 新建BlogMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapperPUBLIC "-//mybatis.org//DTD Mapper 3.0//EN""http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.learn.dev.dao.BlogMapper"><resultMap id="blogMap" type="com.learn.dev.entity.Blog"><result property="id" column="id"/><result property="authorId" column="author_id"/><result property="title" column="title"/><result property="author.id" column="author_id"/><result property="author.username" column="user_name"/><result property="author.password" column="password"/><result property="author.email" column="email"/></resultMap><select id="findAll" resultMap="blogMap">select b.id,b.author_id,b.title,a.user_name,a.password,a.emailfrom blog b,author a where b.author_id = a.id</select>
</mapper>

1.1.5 新建sqlMapConfig.xml配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN""http://mybatis.org/dtd/mybatis-3-config.dtd"><configuration><properties><property name="username" value="root"/><property name="password" value="xijian"/></properties><typeAliases><package name="com.learn.dev.entity"/></typeAliases><!--environments:运行环境--><environments default="dev"><environment id="dev"><!--当前事务交由JDBC进行管理--><transactionManager type="JDBC"/><!--当前使用mybatis提供的连接池--><dataSource type="POOLED"><property name="driver" value="com.mysql.cj.jdbc.Driver"/><property name="url" value="jdbc:mysql:///mybatis?serverTimezone=UTC&amp;characterEncoding=utf8&amp;useUnicode=true&amp;useSSL=false"/><property name="username" value="${username}"/><property name="password" value="${password}"/></dataSource></environment></environments><!--引入映射配置文件--><mappers><mapper resource="BlogMapper.xml"/></mappers></configuration>

1.1.6 新建测试类Test

    @org.junit.Testpublic void test6() throws Exception {//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");//2.解析了配置文件，并创建了sqlSessionFactory工厂SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);//3.生产sqlSessionSqlSession sqlSession = sqlSessionFactory.openSession();// 默认开启一个事务，但是该事务不会自动提交BlogMapper blogMapper = sqlSession.getMapper(BlogMapper.class);List<Blog> blogs = blogMapper.findAll();sqlSession.close();System.out.println(blogs);}

1.1.7 测试结果

1.1.8 注意

resultMap标签也可以定下成下边这种形式：

    <resultMap id="blogMap2" type="com.learn.dev.entity.Blog"><result property="id" column="id"/><result property="authorId" column="author_id"/><result property="title" column="title"/><association property="author" javaType="com.learn.dev.entity.Author"><result property="id" column="author_id"/><result property="username" column="user_name"/><result property="password" column="password"/><result property="email" column="email"/></association></resultMap>

1.2 一对多查询

以博文和作者为例子，一个作者可以有多篇博文。查询所有作者同时查询出每个作者所写的博文。

1.2.1 修改作者类

public class Author {private int id;private String username;private String password;private String email;private List<Blog> blogList;
}

1.2.2 新建AuthorMapper接口

public interface AuthorMapper {List<Author> findAll();
}

1.2.3 新建AuthorMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapperPUBLIC "-//mybatis.org//DTD Mapper 3.0//EN""http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.learn.dev.dao.AuthorMapper"><resultMap id="authorMap" type="com.learn.dev.entity.Author"><result property="id" column="id"/><result property="username" column="user_name"/><result property="password" column="password"/><result property="email" column="email"/><collection property="blogList" ofType="com.learn.dev.entity.Blog"><result property="id" column="blog_id"/><result property="authorId" column="author_id"/><result property="title" column="title"/></collection></resultMap><select id="findAll" resultMap="authorMap">select a.id,a.user_name,a.password,a.email,b.id as blog_id ,b.author_id,b.titlefrom author a left join blog b on a.id = b.author_id</select>
</mapper>

1.2.4 新建测试方法

    @org.junit.Testpublic void test2() throws Exception {//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");//2.解析了配置文件，并创建了sqlSessionFactory工厂SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);//3.生产sqlSessionSqlSession sqlSession = sqlSessionFactory.openSession();// 默认开启一个事务，但是该事务不会自动提交AuthorMapper authorMapper = sqlSession.getMapper(AuthorMapper.class);List<Author> authors = authorMapper.findAll();sqlSession.close();System.out.println(authors);}

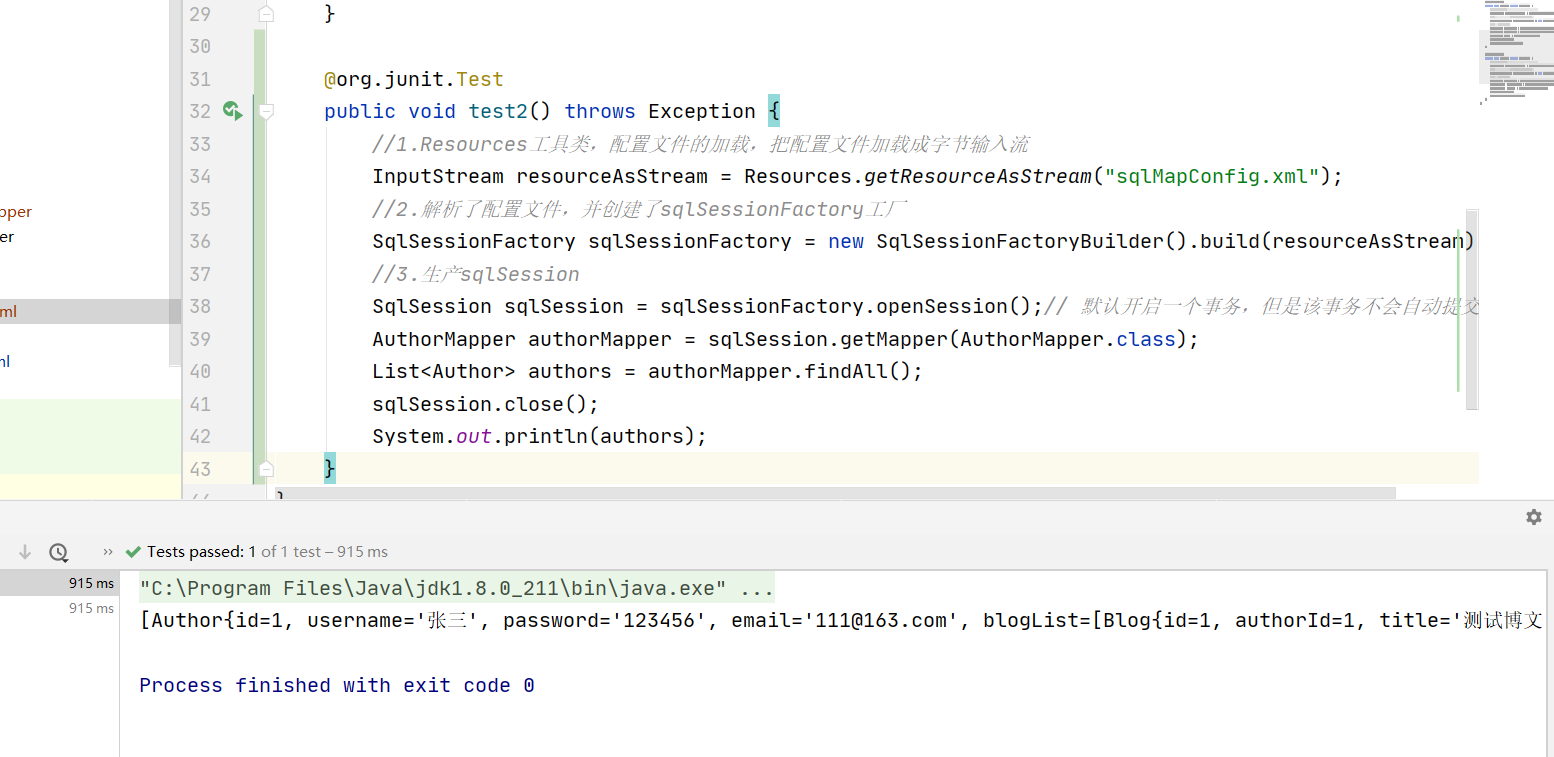

1.2.5 测试结果

1.3 多对多查询

我们以博文和标签作为例子，一个博文可以配置多个标签，一个标签可以被多个博文使用。（提前建好标签表和博文标签关联关系表）

1.3.1 修改博文类

public class Blog {private int id;private int authorId;private String title;private Author author;private List<Tag> tagList;
}

1.3.2 新增标签类

public class Tag {private int id;private String tagName;private String tagType;
}

1.3.3 修改BlogMapper接口

public interface BlogMapper {List<Blog> findAll();List<Blog> findAllBlogAndTag();}

1.3.4 修改BlogMapper.xml

    <resultMap id="blogMap3" type="com.learn.dev.entity.Blog"><result property="id" column="id"/><result property="authorId" column="author_id"/><result property="title" column="title"/><collection property="tagList" ofType="com.learn.dev.entity.Tag"><result property="id" column="tag_id"/><result property="tagName" column="tag_name"/><result property="tagType" column="tag_type"/></collection></resultMap><select id="findAllBlogAndTag" resultMap="blogMap3">SELECTb.id,b.author_id,b.title,t.id AS tag_id,t.tag_name,t.tag_typeFROMblog bLEFT JOIN blog_tag a ON b.id = a.blog_idINNER JOIN tag t ON a.tag_id = t.id</select>

1.3.5 新增测试方法

    @org.junit.Testpublic void test3() throws Exception {//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");//2.解析了配置文件，并创建了sqlSessionFactory工厂SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);//3.生产sqlSessionSqlSession sqlSession = sqlSessionFactory.openSession();// 默认开启一个事务，但是该事务不会自动提交BlogMapper blogMapper = sqlSession.getMapper(BlogMapper.class);List<Blog> blogs = blogMapper.findAllBlogAndTag();sqlSession.close();for (Blog blog : blogs) {System.out.println(blog);}}

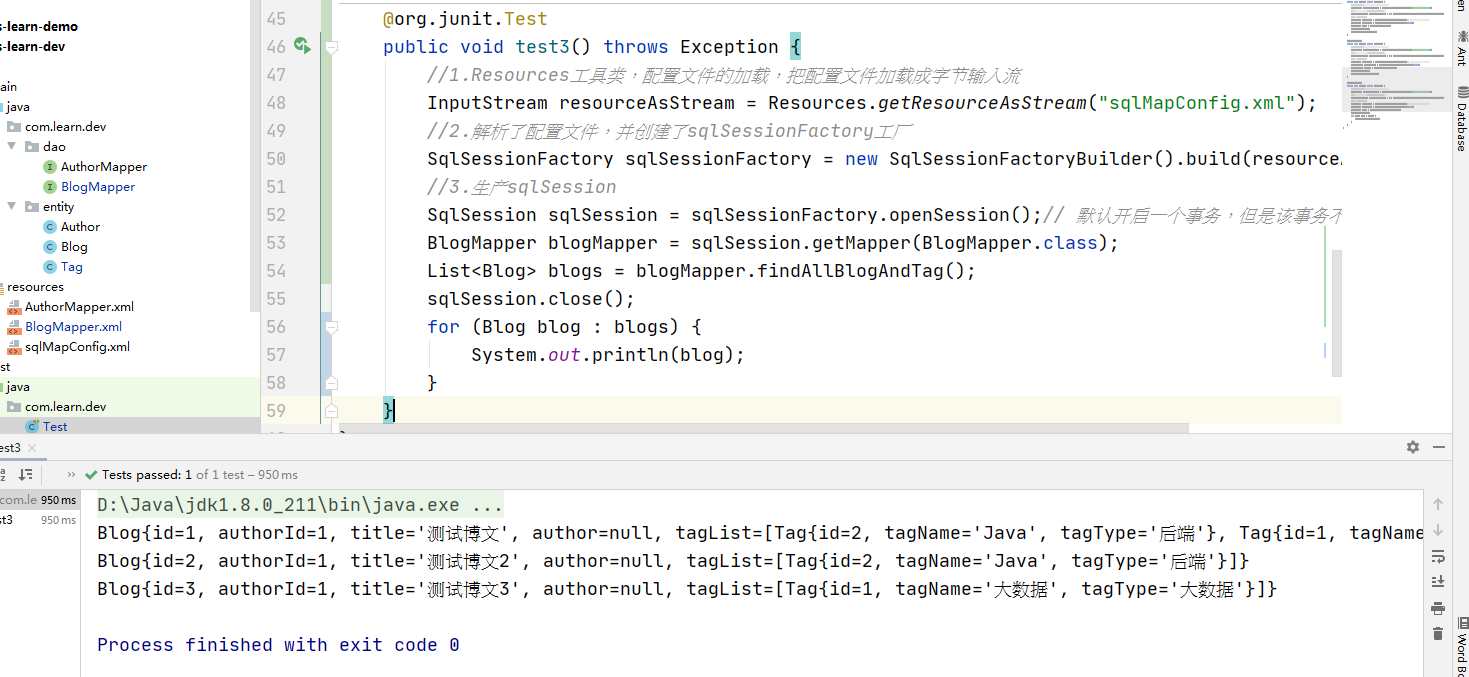

1.3.6 测试结果

二、Mybatis注解开发

2.1 Mybatis注解

举例一些Mybatis的常用注解，
@Insert——新增
@Update——更新
@Delete——删除
@Select——查询
@Result——结果集，替代了_<result_>标签，
@Results——多个结果集，替代的是_<resultMap_>，使用格式：@Results(@Result())或者@Results({@Result(),@Result()})
@One——一对一的结果集
@Many——一对多的结果集

2.2 Mybatis的CRUD之注解开发

重新以用户表作为例子，实现注解的形式完成增删改查

2.2.1 新建用户类User2

public class User2 {private int id;private String name;private String password;
}

2.2.2 新建UserMapper2接口

public interface UserMapper2 {@Insert("insert into user values(#{id},#{name},#{password})")int insertUser(User2 user);@Update("update user set name = #{name} where id = #{id}")int updateUser(User2 user);@Delete("delete from user where id = #{id}")int deleteUser(User2 user);@Select("select * from user")List<User2> queryAllUser();}

2.2.3 修改sqlMapConfig.xml

    <!--引入映射配置文件--><mappers><!--<mapper resource="BlogMapper.xml"/>--><!--<mapper resource="AuthorMapper.xml"/>--><!--扫描使用注解的类--><mapper class="com.learn.dev.dao.UserMapper2"/><!--扫描使用注解的类所在的包--><!--<package name="com.learn.dev.dao"/>--></mappers>

引入mapper接口所在的类或者引入所在的包，两种都可以。

2.2.4 新增测试方法

    @org.junit.Testpublic void test4() throws Exception {//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");//2.解析了配置文件，并创建了sqlSessionFactory工厂SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);//3.生产sqlSessionSqlSession sqlSession = sqlSessionFactory.openSession();// 默认开启一个事务，但是该事务不会自动提交UserMapper2 userMapper2 = sqlSession.getMapper(UserMapper2.class);User2 user2 = new User2();user2.setId(2);user2.setName("lisi");user2.setPassword("123456");int insertUser = userMapper2.insertUser(user2);sqlSession.commit();System.out.println("******Test insert user:" + insertUser);User2 user3 = new User2();user3.setId(2);user3.setName("lisi2");user3.setPassword("123456");userMapper2.updateUser(user3);sqlSession.commit();System.out.println("******Test update user:" + user3.toString());List<User2> list = userMapper2.queryAllUser();System.out.println("******Test query user:" + list);User2 user4 = new User2();user4.setId(2);int deleteUser = userMapper2.deleteUser(user4);sqlSession.commit();System.out.println("******Test delete user:" + deleteUser);sqlSession.close();}

2.2.5 测试结果

2.3 一对一查询之注解开发

仍旧以博文和作者为例，一篇博文属于一位作者

2.3.1 修改sqlMapConfig.xml

    <!--引入映射配置文件--><mappers><!--<mapper resource="BlogMapper.xml"/>--><!--<mapper resource="AuthorMapper.xml"/>--><!--扫描使用注解的类--><!--<mapper class="com.learn.dev.dao2.UserMapper2"/>--><!--扫描使用注解的类所在的包--><package name="com.learn.dev.dao2"/></mappers>

新建一个包dao2存放注解开发的mapper 接口

2.3.2 新建AuthorMapper2接口

public interface AuthorMapper2 {@Select("select * from author where id = #{id}")@Results({@Result(id = true,property = "id",column = "id"),@Result(property = "username",column = "user_name"),@Result(property = "password",column = "password"),@Result(property = "email",column = "email")})Author queryAuthorById(int id);
}

2.3.3 新建BlogMapper2接口

public interface BlogMapper2 {@Select("select * from blog")@Results({@Result(id=true,property = "id",column = "id"),@Result(property = "authorId",column = "author_id"),@Result(property = "title",column = "title"),@Result(property = "author",column = "author_id",javaType = Author.class,one = @One(select = "com.learn.dev.dao2.AuthorMapper2.queryAuthorById"))})List<Blog> queryAll();
}

2.3.4 新建测试方法

    @org.junit.Testpublic void test5() throws Exception {//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");//2.解析了配置文件，并创建了sqlSessionFactory工厂SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);//3.生产sqlSessionSqlSession sqlSession = sqlSessionFactory.openSession();// 默认开启一个事务，但是该事务不会自动提交BlogMapper2 blogMapper2 = sqlSession.getMapper(BlogMapper2.class);List<Blog> blogs = blogMapper2.queryAll();sqlSession.close();for (Blog blog : blogs) {System.out.println(blog);}}

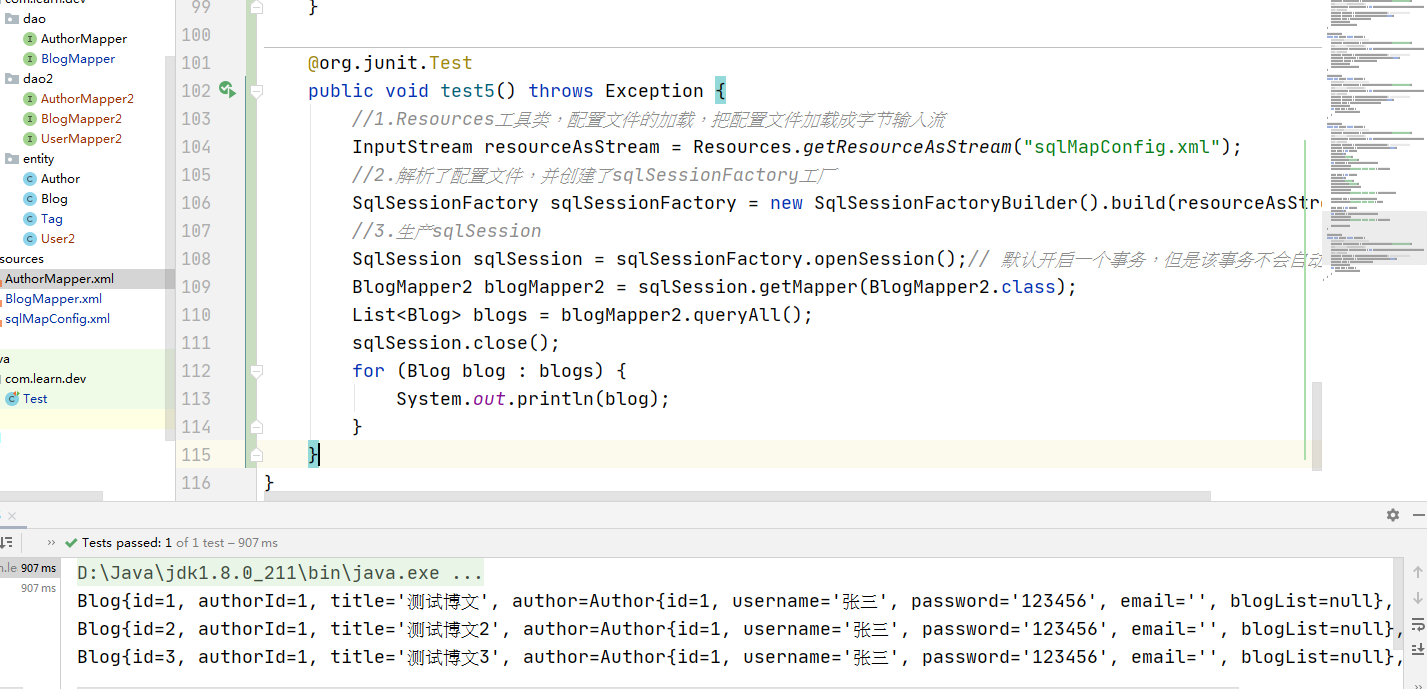

2.3.5 测试结果

2.4 一对多查询之注解开发

仍旧以博文和作者为例，一个作者有多篇博文，而一篇博文只属于一位作者

2.4.1 修改BlogMapper2接口

    @Select("select * from blog where author_id = #{authorId}")@Results({@Result(id=true,property = "id",column = "id"),@Result(property = "authorId",column = "author_id"),@Result(property = "title",column = "title")})List<Blog> queryAllBlogByAuthorId(int authorId);

2.4.2 修改AuthorMapper2接口

    @Select("select * from author")@Results({@Result(id = true, property = "id", column = "id"),@Result(property = "username", column = "user_name"),@Result(property = "password", column = "password"),@Result(property = "email", column = "email"),@Result(property = "blogList", column = "id",javaType = List.class,many = @Many(select = "com.learn.dev.dao2.BlogMapper2.queryAllBlogByAuthorId"))})List<Author> queryAllAuthorAndBlog();

2.4.3 新增测试方法

    public void test6() throws Exception {//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");//2.解析了配置文件，并创建了sqlSessionFactory工厂SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);//3.生产sqlSessionSqlSession sqlSession = sqlSessionFactory.openSession();// 默认开启一个事务，但是该事务不会自动提交AuthorMapper2 authorMapper2 = sqlSession.getMapper(AuthorMapper2.class);List<Author> authors = authorMapper2.queryAllAuthorAndBlog();sqlSession.close();for (Author author : authors) {System.out.println(author);}}

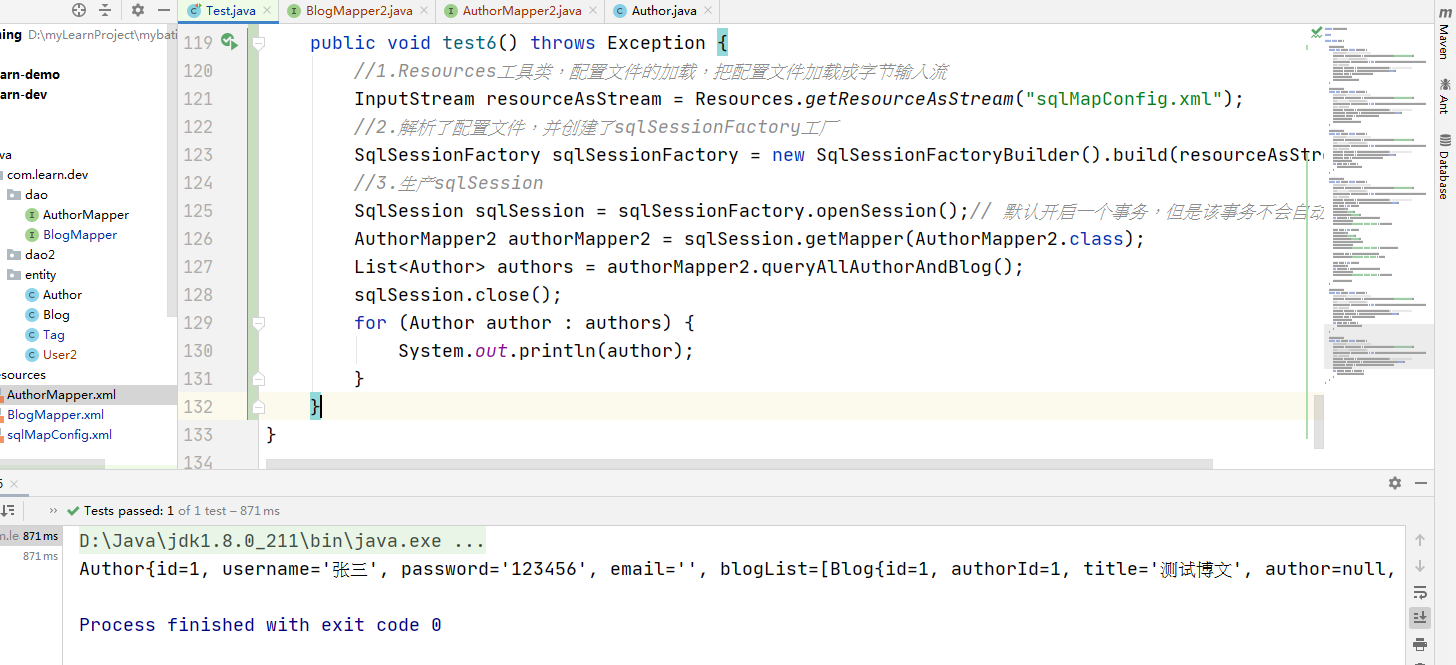

2.4.4 测试结果

2.5 多对多查询之注解开发

仍旧以博文和标签作为例子，一篇博文有多个标签，一个标签也可以配置在多个博文上

2.5.1 新建TagMapper接口

public interface TagMapper {@Select("SELECT t.id,t.tag_name,t.tag_type FROM blog_tag a INNER JOIN tag t ON a.tag_id = t.id where a.blog_id = " +"#{id}")@Results({@Result(id = true,property = "id",column = "id"),@Result(property = "tagName",column = "tag_name"),@Result(property = "tagType",column = "tag_type")})List<Tag> queryTagByBlogId(int id);
}

2.5.2 修改BlogMapper2接口

    @Select("select * from blog")@Results({@Result(id=true,property = "id",column = "id"),@Result(property = "authorId",column = "author_id"),@Result(property = "title",column = "title"),@Result(property = "tagList",column = "id",javaType = List.class,many = @Many(select = "com.learn.dev.dao2.TagMapper.queryTagByBlogId"))})List<Blog> queryAllBlogAndTag();

2.5.3 新增测试方法

    @org.junit.Testpublic void test7() throws Exception {//1.Resources工具类，配置文件的加载，把配置文件加载成字节输入流InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");//2.解析了配置文件，并创建了sqlSessionFactory工厂SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);//3.生产sqlSessionSqlSession sqlSession = sqlSessionFactory.openSession();// 默认开启一个事务，但是该事务不会自动提交BlogMapper2 blogMapper2 = sqlSession.getMapper(BlogMapper2.class);List<Blog> blogs = blogMapper2.queryAllBlogAndTag();sqlSession.close();for (Blog blog : blogs) {System.out.println(blog);for (Tag tag : blog.getTagList()) {System.out.println("*****"+tag);}}}

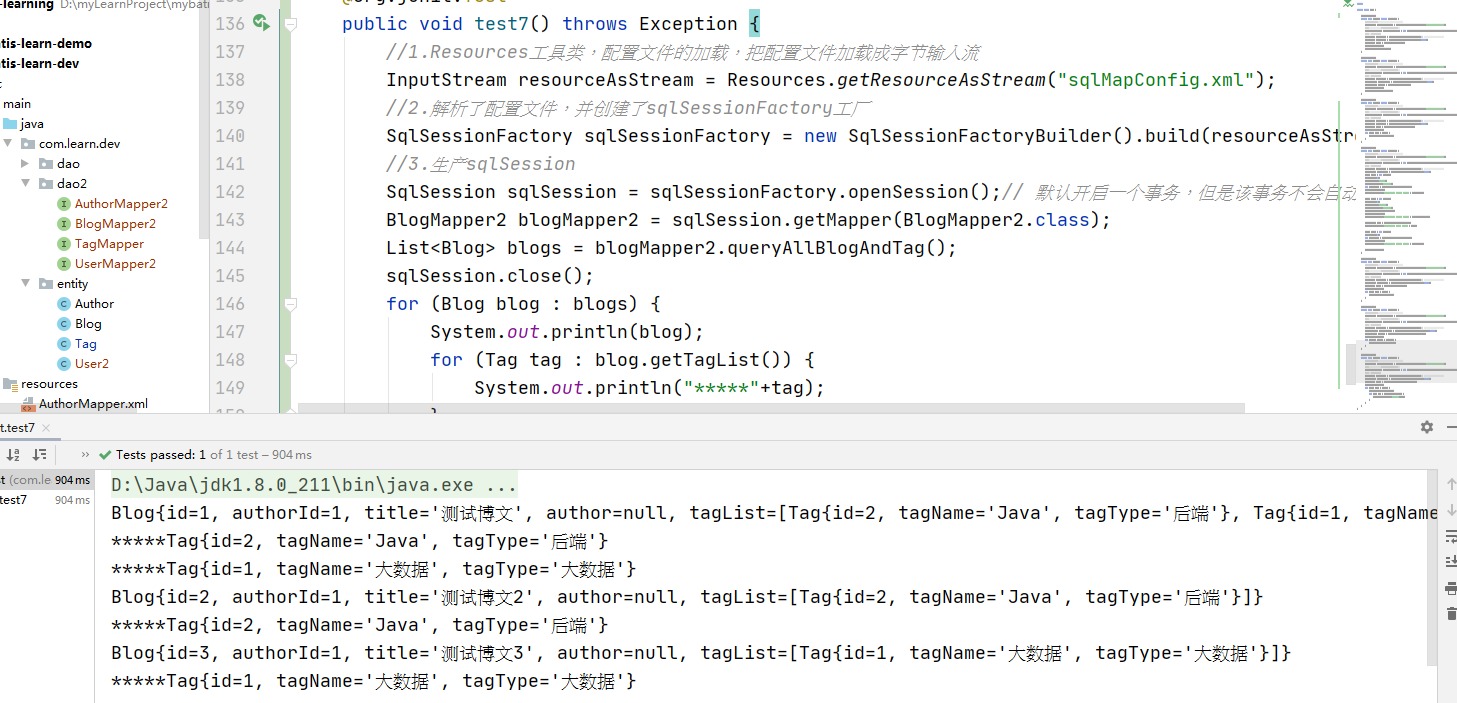

2.5.4 测试结果

三、Mybatis缓存

缓存实际上就是存在内存里的数据库执行结果的数据，使用缓存可以提高我们的应用响应效率。 Mybatis提供了一级缓存和二级缓存两种机制。

3.0 mybatis-learn-cache

新建一个名叫mybatis-learn-cache的子工程。

新建User类；

public class User {private int id;private String name;private String password;
}

新建UserMapper接口

public interface UserMapper {User queryUserById(int id);
}

新建UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapperPUBLIC "-//mybatis.org//DTD Mapper 3.0//EN""http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.learn.cache.dao.UserMapper"><resultMap id="userMap" type="com.learn.cache.entity.User"><result property="id" column="id"/><result property="name" column="name"/><result property="password" column="password"/></resultMap><select id="queryUserById" parameterType="int" resultMap="userMap">select * from user u where u.id = #{id}</select>
</mapper>

新增log4j.properties配置文件

3.1 一级缓存

Mybatis一级缓存又叫SqlSession缓存，在操作数据库时候会创建一个SqlSession对象，对象中有一个HashMap的数据结构来存储缓存数据。不同SqlSession之间的HashMap互不影响。

3.1.1 一级缓存的使用

3.1.1.1 一级缓存的保存

3.1.1.1.1 修改UserMapper接口

public interface UserMapper {User queryUserById(int id);
}

3.1.1.1.2 修改UserMapper.xml

    <resultMap id="userMap" type="com.learn.cache.entity.User"><result property="id" column="id"/><result property="name" column="name"/><result property="password" column="password"/></resultMap><select id="queryUserById" parameterType="int" resultMap="userMap">select * from user u where u.id = #{id}</select>

3.1.1.1.3 新增测试方法

public class Test {private SqlSessionFactory sqlSessionFactory;@Beforepublic void before() throws IOException {InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);}@org.junit.Testpublic void Test1() {SqlSession sqlSession = sqlSessionFactory.openSession();UserMapper userMapper = sqlSession.getMapper(UserMapper.class);User user = userMapper.queryUserById(1);System.out.println(user);User user2 = userMapper.queryUserById(1);System.out.println(user2);sqlSession.close();}
}

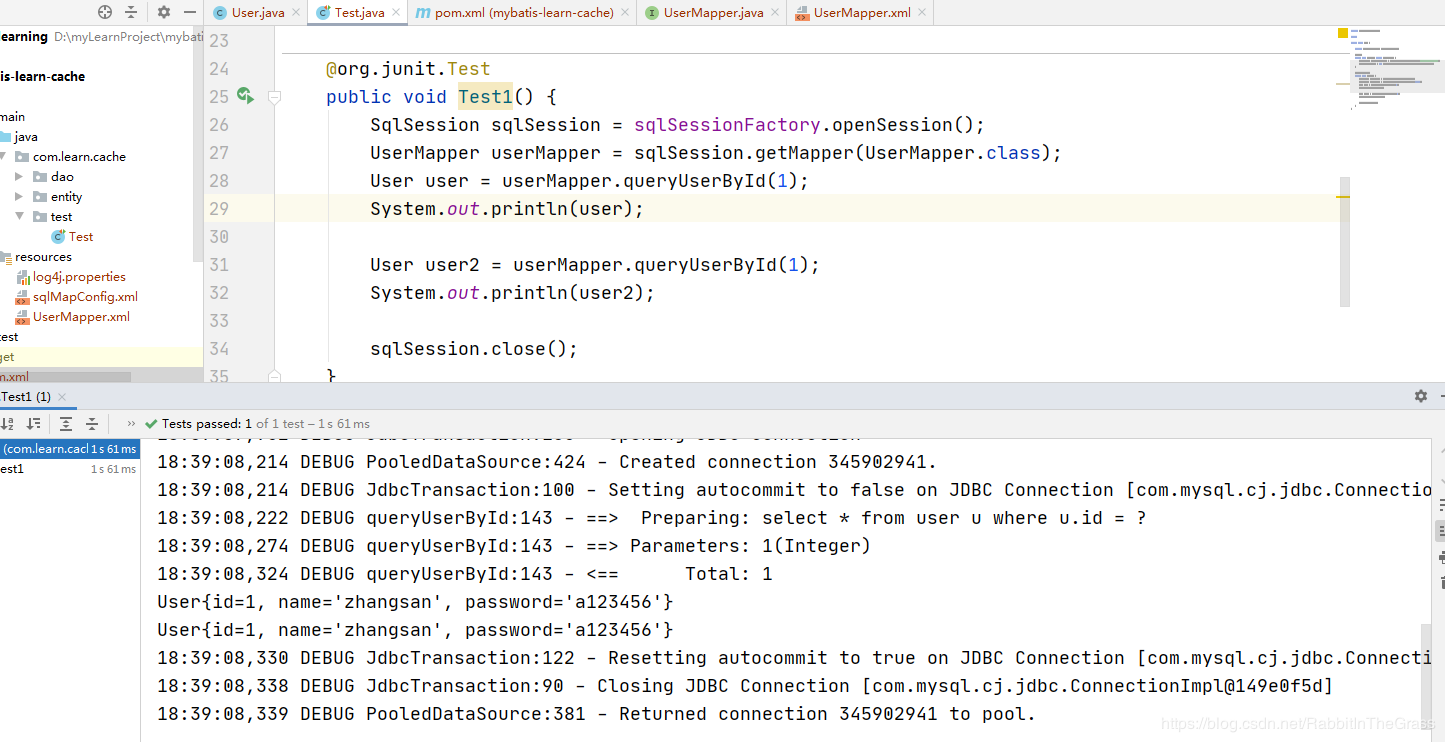

3.1.1.1.4 测试结果

3.1.1.2 一级缓存的清除

3.1.1.2.1 修改UserMapper接口

public interface UserMapper {User queryUserById(int id);int updateUser(User user);
}

3.1.1.2.2 修改UserMapper.xml

    <update id="updateUser" parameterType="com.learn.cache.entity.User">update user u set u.name = #{name} where u.id = #{id}</update>

3.1.1.2.3 新增测试方法

    @org.junit.Testpublic void Test2() {SqlSession sqlSession = sqlSessionFactory.openSession();UserMapper userMapper = sqlSession.getMapper(UserMapper.class);User user = userMapper.queryUserById(1);System.out.println(user);user.setName("ceshi");userMapper.updateUser(user);sqlSession.commit();User user2 = userMapper.queryUserById(1);System.out.println(user2);sqlSession.close();}

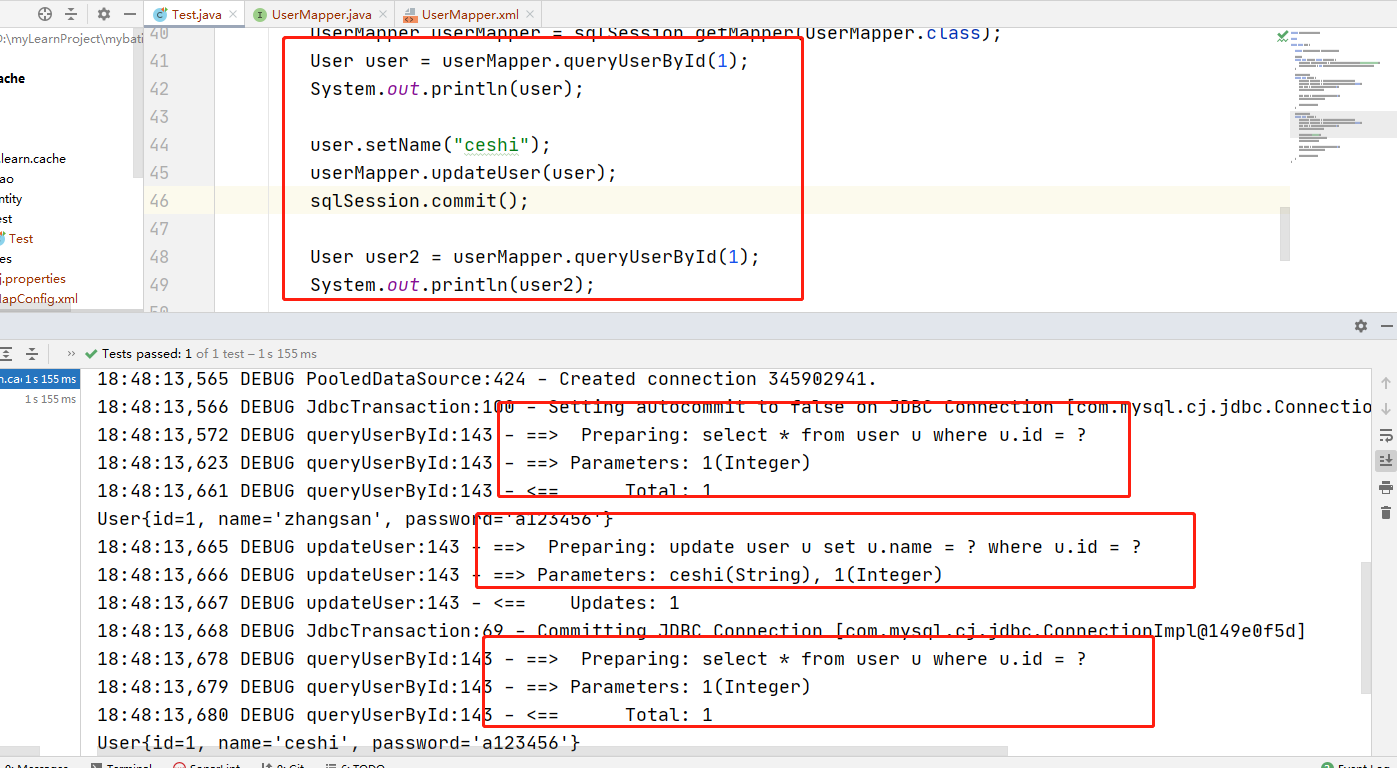

3.1.1.2.4 测试结果

3.1.2 一级缓存总结

1. 查询的时候会先查询缓存，如果缓存中有则返回结果。如果缓存中没有，则查询数据库，并将结果放入缓存中。
2. 如果中间有涉及插入、更新、删除等需要SqlSession执行commit()方法的操作，则会清空SqlSession中的缓存。

3.1.3 一级缓存原理分析

一级缓存离不开SqlSession，所以我们从SqlSession类开始寻找缓存是如何创建的。在SqlSession类中只找到一个叫clearCache();的方法，一步步跟进发现

最终在PerpetualCache发现，缓存其实是private final Map<Object, Object> cache = new HashMap<>();一个HashMap的数据结构。

我们很容易猜想到缓存的创建是在Executor类，我们看一下它的query方法，它的具体实现是在BaseExecutor类

  @Overridepublic <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {BoundSql boundSql = ms.getBoundSql(parameter);CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);return query(ms, parameter, rowBounds, resultHandler, key, boundSql);}

其中createCacheKey就是创建缓存的key。继续向下看，

  @Overridepublic <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());if (closed) {throw new ExecutorException("Executor was closed.");}if (queryStack == 0 && ms.isFlushCacheRequired()) {clearLocalCache();}List<E> list;try {queryStack++;list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;if (list != null) {handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);} else {list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);}} finally {queryStack--;}if (queryStack == 0) {for (DeferredLoad deferredLoad : deferredLoads) {deferredLoad.load();}// issue #601deferredLoads.clear();if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {// issue #482clearLocalCache();}}return list;}

如果在list在localCache.getObject(key)查不到的话，就调用queryFromDatabase方法去数据库查询，我们继续看这个方法

  private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {List<E> list;localCache.putObject(key, EXECUTION_PLACEHOLDER);try {list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);} finally {localCache.removeObject(key);}localCache.putObject(key, list);if (ms.getStatementType() == StatementType.CALLABLE) {localOutputParameterCache.putObject(key, parameter);}return list;}

在这个方法里，执行完数据库查询操作后，会进行localCache的写入putObject

  private final Map<Object, Object> cache = new HashMap<>();@Overridepublic void putObject(Object key, Object value) {cache.put(key, value);}

所以最终是Map的put，缓存对象存在这个map中。

同样，我们也可以看看BaseExecutor的update和commit方法

  @Overridepublic void commit(boolean required) throws SQLException {if (closed) {throw new ExecutorException("Cannot commit, transaction is already closed");}clearLocalCache();flushStatements();if (required) {transaction.commit();}}@Overridepublic int update(MappedStatement ms, Object parameter) throws SQLException {ErrorContext.instance().resource(ms.getResource()).activity("executing an update").object(ms.getId());if (closed) {throw new ExecutorException("Executor was closed.");}clearLocalCache();return doUpdate(ms, parameter);}

这俩个方法都会执行clearLocalCache();方法。

  @Overridepublic void clearLocalCache() {if (!closed) {localCache.clear();localOutputParameterCache.clear();}}

  @Overridepublic void clear() {cache.clear();}

所以sqlSession涉及到更新、删除、提交的时候会清除一级缓存。

3.2 二级缓存

二级缓存和一级缓存原理一样，不同的是它基于mapper的namespace，也意味着多个sqlSession可以共享同一个mapper的二级缓存。

3.2.1 二级缓存的使用

与一级缓存的默认开启不同，Mybatis的二级缓存需要我们手动开启。

1. 修改sqlMapConfig.xml

       <!-- 开启二级缓存 --><settings><setting name="cacheEnabled" value="true"/></settings>


2. 修改UserMapper.xml

   <cache/>


   PerpetualCache类是Mybatis默认实现缓存的类，当然我们也可以实现Cache接口来自定义缓存。所以二级缓存底层其实还是一个Map数据结构。

3. 实体类实现序列化接口

   public class User implements Serializable {private static final long serialVersionUID = 8164800911245107262L;private int id;private String name;private String password;
   }


3.2.2 测试二级缓存

3.2.2.1 测试与SqlSession 无关

    @org.junit.Testpublic void Test3() {SqlSession sqlSession1 = sqlSessionFactory.openSession();UserMapper userMapper1 = sqlSession1.getMapper(UserMapper.class);User user1 = userMapper1.queryUserById(1);System.out.println(user1);sqlSession1.close();SqlSession sqlSession2 = sqlSessionFactory.openSession();UserMapper userMapper2 = sqlSession2.getMapper(UserMapper.class);User user2 = userMapper2.queryUserById(1);System.out.println(user2);sqlSession2.close();}

测试结果：

3.2.2.2 测试二级缓存的清除

    @org.junit.Testpublic void Test4() {SqlSession sqlSession1 = sqlSessionFactory.openSession();UserMapper userMapper1 = sqlSession1.getMapper(UserMapper.class);User user1 = userMapper1.queryUserById(1);System.out.println(user1);sqlSession1.close();SqlSession sqlSession2 = sqlSessionFactory.openSession();UserMapper userMapper2 = sqlSession2.getMapper(UserMapper.class);User user2 = new User();user2.setId(1);user2.setName("李四");user2.setPassword("123");userMapper2.updateUser(user2);sqlSession2.commit();sqlSession2.close();SqlSession sqlSession3 = sqlSessionFactory.openSession();UserMapper userMapper3 = sqlSession3.getMapper(UserMapper.class);User user3 = userMapper3.queryUserById(1);System.out.println(user3);sqlSession3.close();}

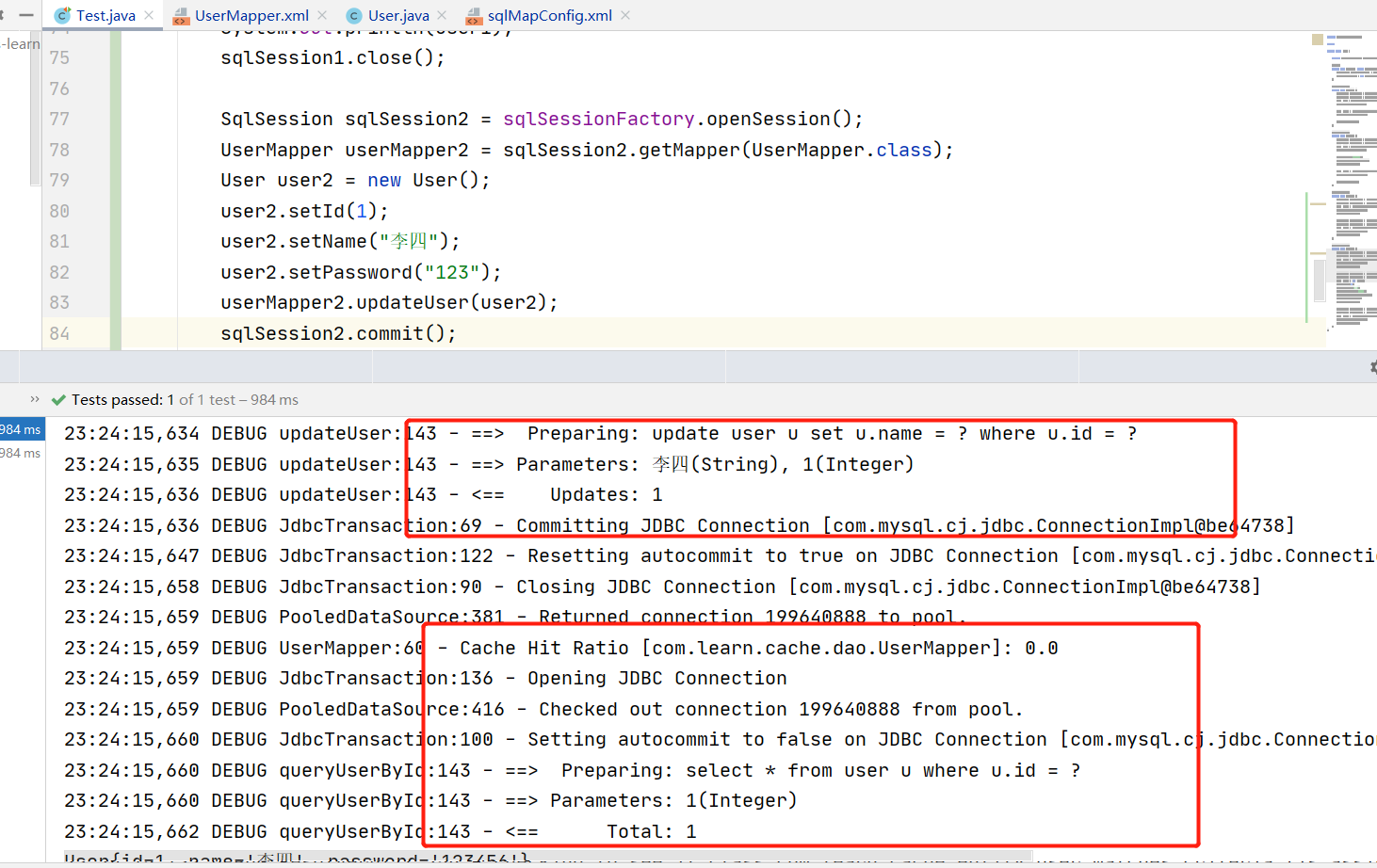

测试结果：

3.2.3 useCache和flushCache的配置

在mapper.xml配置文件中还可以配置userCache和flushCache。

1. userCache用来设置是否禁用二级缓存，默认是true。
2. flushCache设置是否刷新缓存。

四、Mybatis插件

4.1 Mybatis插件简介

Mybatis在四大组件（Executor̵、StatementHandler̵、ParameterHandler̵、ResultSetHandler）提供了 简单易用的插件扩展机制。支持利用插件对四大核心对象进行拦截，增强核心对象的功能。本质上是借助于底层动态代理实现的。

4.2 Mybatis插件原理

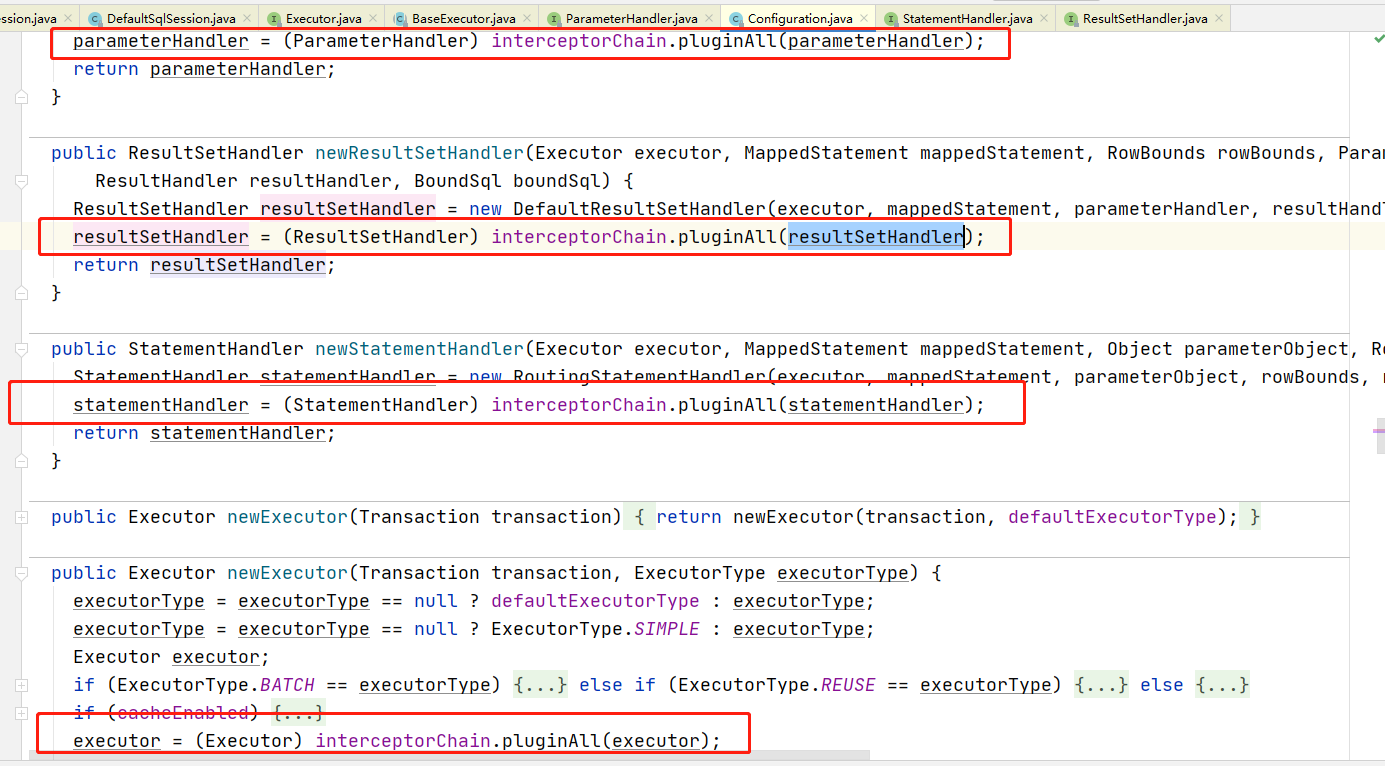

Mybatis的四大对象（Executor̵、StatementHandler̵、ParameterHandler̵、ResultSetHandler）在创建完成后都执行了interceptorChain.pluginAll()方法

  public Object pluginAll(Object target) {for (Interceptor interceptor : interceptors) {target = interceptor.plugin(target);}return target;}

获取所有的拦截器，调用interceptor.plugin(target)并返回target对象。我们可以使用AOP的方式创建出代理对象，拦截四大对象的每个操作。

新建一个插件类

@Intercepts({@Signature(type = Executor.class,method = "query",args = {MappedStatement.class,Object.class, RowBounds.class, ResultHandler.class})
})
public class MyInterceptor implements Interceptor {}

修改sqlMapConfig.xml配置文件

    <plugins><plugin interceptor="com.learn.cache.interceptor.MyInterceptor"></plugin></plugins>

这样，Mybatis在启动的时候加载插件类并保存在InterceptorChain҅中。我们在执行某条SQL语句时，先创建SqlSession，同时创建了Executor实例，Mybatis会为该实例创建代理对象，这样我们插件的逻辑会在Executor类相关方法调用前执行。

4.3 自定义Mybatis插件

4.3.1 修改MyInterceptor类

@Intercepts({@Signature(type = Executor.class,//要拦截的接口method = "query",//要拦截的接口内的方法args = {MappedStatement.class,Object.class, RowBounds.class, ResultHandler.class}//拦截方法的入参)
})
public class MyInterceptor implements Interceptor {//每次方法的拦截都会进入@Overridepublic Object intercept(Invocation invocation) throws Throwable {System.out.println("*********进入方法增强************");//继续执行原方法return invocation.proceed();}@Overridepublic Object plugin(Object target) {//target要包装的对象,为该拦截器生成代理对象并放入拦截器链中return Plugin.wrap(target,this);}@Overridepublic void setProperties(Properties properties) {//插件初始化的时候调用，设置在XML文件里配置的属性System.out.println(properties);}
}

4.3.2 修改sqlMapConfig.xml配置文件

    <plugins><plugin interceptor="com.learn.cache.interceptor.MyInterceptor"><property name="pro" value="123"/></plugin></plugins>

4.3.3 新建测试方法

    @org.junit.Testpublic void test5() {SqlSession sqlSession1 = sqlSessionFactory.openSession();UserMapper userMapper1 = sqlSession1.getMapper(UserMapper.class);User user1 = userMapper1.queryUserById(1);System.out.println(user1);sqlSession1.close();}

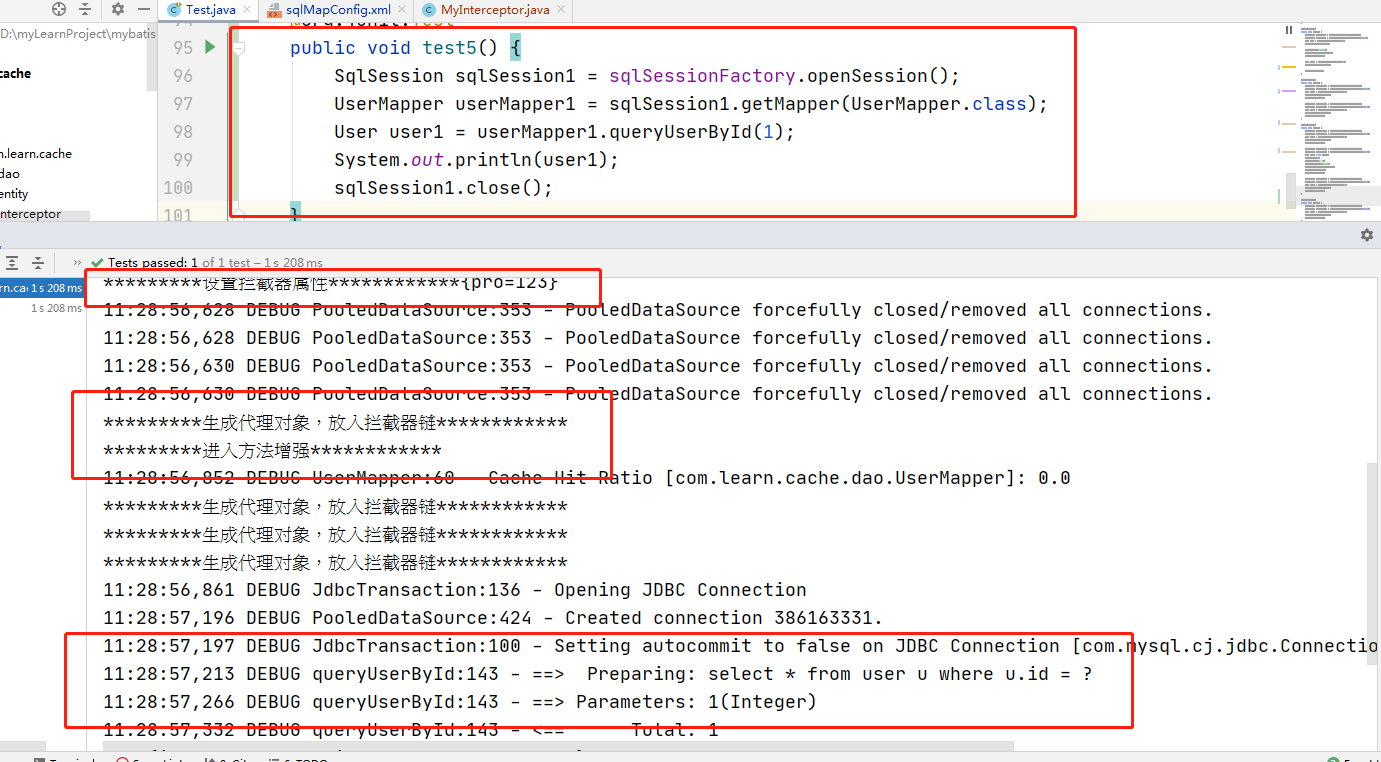

测试结果：

4.4 Mybatis插件源码分析

public class Plugin implements InvocationHandler {private final Object target;private final Interceptor interceptor;private final Map<Class<?>, Set<Method>> signatureMap;private Plugin(Object target, Interceptor interceptor, Map<Class<?>, Set<Method>> signatureMap) {this.target = target;this.interceptor = interceptor;this.signatureMap = signatureMap;}public static Object wrap(Object target, Interceptor interceptor) {Map<Class<?>, Set<Method>> signatureMap = getSignatureMap(interceptor);Class<?> type = target.getClass();Class<?>[] interfaces = getAllInterfaces(type, signatureMap);if (interfaces.length > 0) {return Proxy.newProxyInstance(type.getClassLoader(),interfaces,new Plugin(target, interceptor, signatureMap));}return target;}@Overridepublic Object invoke(Object proxy, Method method, Object[] args) throws Throwable {try {Set<Method> methods = signatureMap.get(method.getDeclaringClass());if (methods != null && methods.contains(method)) {return interceptor.intercept(new Invocation(target, method, args));}return method.invoke(target, args);} catch (Exception e) {throw ExceptionUtil.unwrapThrowable(e);}}private static Map<Class<?>, Set<Method>> getSignatureMap(Interceptor interceptor) {Intercepts interceptsAnnotation = interceptor.getClass().getAnnotation(Intercepts.class);// issue #251if (interceptsAnnotation == null) {throw new PluginException("No @Intercepts annotation was found in interceptor " + interceptor.getClass().getName());}Signature[] sigs = interceptsAnnotation.value();Map<Class<?>, Set<Method>> signatureMap = new HashMap<>();for (Signature sig : sigs) {Set<Method> methods = signatureMap.computeIfAbsent(sig.type(), k -> new HashSet<>());try {Method method = sig.type().getMethod(sig.method(), sig.args());methods.add(method);} catch (NoSuchMethodException e) {throw new PluginException("Could not find method on " + sig.type() + " named " + sig.method() + ". Cause: " + e, e);}}return signatureMap;}private static Class<?>[] getAllInterfaces(Class<?> type, Map<Class<?>, Set<Method>> signatureMap) {Set<Class<?>> interfaces = new HashSet<>();while (type != null) {for (Class<?> c : type.getInterfaces()) {if (signatureMap.containsKey(c)) {interfaces.add(c);}}type = type.getSuperclass();}return interfaces.toArray(new Class<?>[interfaces.size()]);}}

分析：
从这块源码中我们可以看到Plugin实现了InvocationHandler接口，所有它的invoke(Object proxy, Method method, Object[] args)方法会拦截所有方法的调用，在invoke(Object proxy, Method method, Object[] args)方法里，对所拦截的方法进行检测，判断是否执行插件的逻辑。

1. Set<Method> methods = signatureMap.get(method.getDeclaringClass())获取所有被拦截的方法列表；
2. if (methods != null && methods.contains(method)) {}判断方法列表是否包含被拦截的方法，如果包括则执行插件的逻辑interceptor.intercept(new Invocation(target, method, args));
3. 最终执行method.invoke(target, args);

Invocation类存放的是目标类、方法、参数。

4.5 常见Mybatis插件的使用

4.5.1 PageHelper分页插件

参考资料：
PageHelper—GitHub仓库
PageHelper手册

分页助手PageHelper是将分页的复杂操作进行封装。下边演示如何使用：

4.5.1.1 引入PageHelper依赖

<dependency><groupId>com.github.pagehelper</groupId><artifactId>pagehelper</artifactId><version>5.1.11</version>
</dependency>

4.5.1.2 修改sqlMapConfig.xml配置

    <plugins><!--<plugin interceptor="com.learn.cache.interceptor.MyInterceptor"><property name="pro" value="123"/></plugin>--><plugin interceptor="com.github.pagehelper.PageInterceptor"><property name="dialect" value="com.github.pagehelper.PageHelper"/></plugin></plugins>

4.5.1.3 新增测试方法

    @org.junit.Testpublic void test6() {SqlSession sqlSession = sqlSessionFactory.openSession();UserMapper userMapper = sqlSession.getMapper(UserMapper.class);PageHelper.startPage(0,2);List<User> users = userMapper.queryAllUser();for (User user : users) {System.out.println(user);}sqlSession.close();}

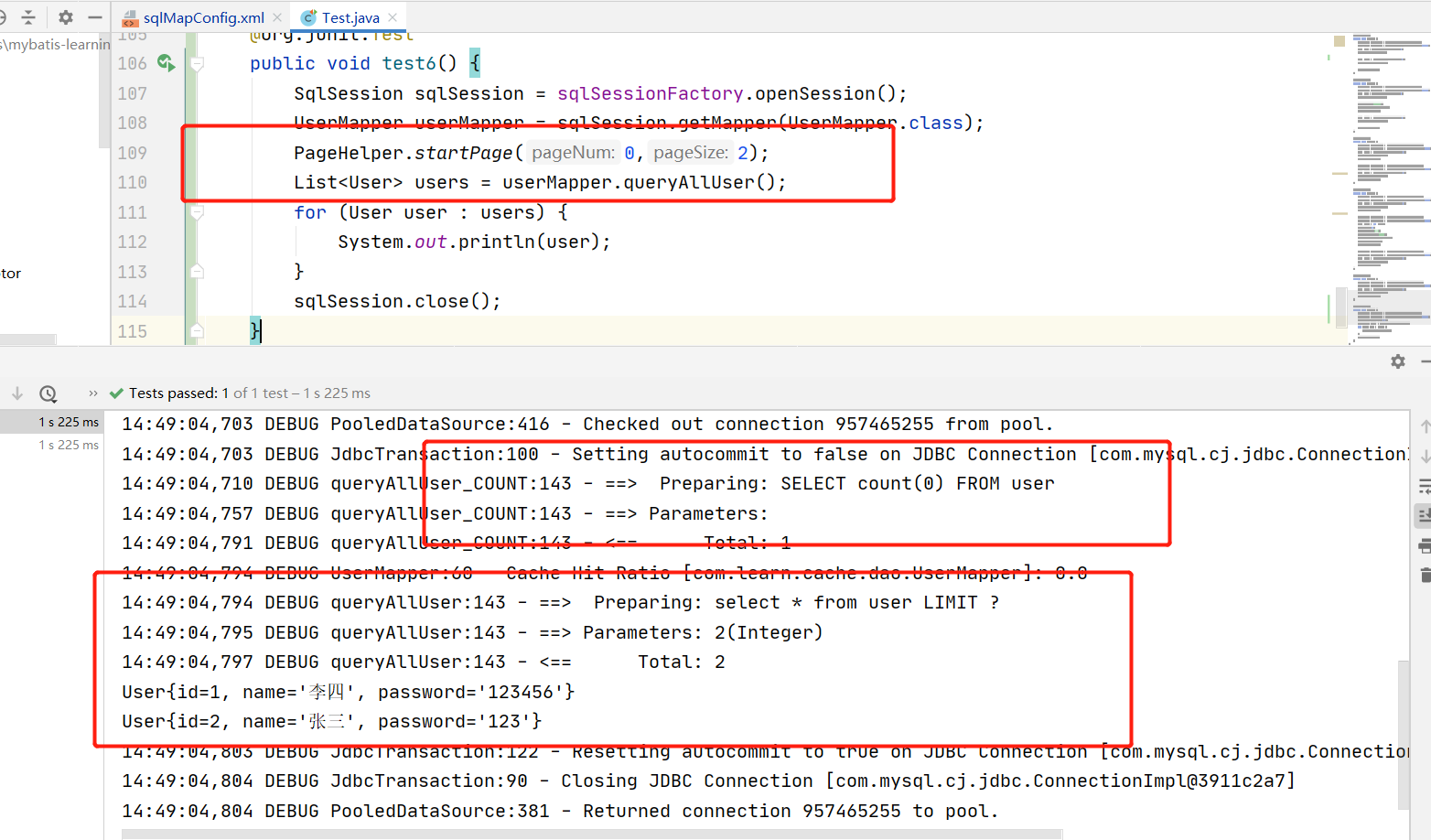

测试结果：

4.5.2 通用Mapper插件

通用Mapper插件是为了解决单表的增删改查，基于Mybatis的插件机制，不需要写SQL，不需要在dao层增加方法，只需要提供实体类即可。

4.5.2.1 引入通用Mapper插件依赖

        <!--通用mapper插件依赖--><dependency><groupId>tk.mybatis</groupId><artifactId>mapper</artifactId><version>4.1.5</version></dependency>

备注

由于从3.2.0版本开始，该插件移除了MapperInterceptor类，不再支持在mybatis核心配置文件中配置，需要依赖spring或者spring boot 环境。所以此处先不深入学习了，后边我们独立讲解一下。

未完。。。待续~~

五、彩蛋

本篇我们讲解了Mybatis基于XML的开发模式、基于注解的开发模式、Mybatis缓存、Mybatis插件的使用等。

下一篇我们深入学习一下Mybatis的架构设计，源码分析以及涉及到的Java设计模式。
