STM_Interrupt
下面Cpu0_Main.c的代码, STM配置每500ms触发一次中断, 中断中翻转LED:
- STM是一个自由运行的64bit计数器, 先声明结构体
IfxStm_CompareConfig g_STMConf;, 初始化结构体; - 设置中断优先级
g_STMConf.triggerPriority - 设置服务对象是哪个CPU核
g_STMConf.typeOfService = IfxSrc_Tos_cpu0; - 设置初次中断计数
g_STMConf.ticks - 用上面的配置对STM初始化
IfxStm_initCompare(STM, &g_STMConf); - 中断中更新比较寄存器值来触发下一次中断
IfxStm_increaseCompare();
#include "Ifx_Types.h"
#include "IfxCpu.h"
#include "IfxScuWdt.h"#include "Bsp.h"
#include "IfxPort.h"
#include "IfxStm.h"#define ISR_PRIORITY_STM 40 /* Priority for interrupt ISR */
#define TIMER_INT_TIME (uint32)(TimeConst_100ms * 5) /* Time between interrupts (500 ms) */#define LED &MODULE_P13,0 /* LED toggled in Interrupt Service Routine (ISR) */
#define STM &MODULE_STM0 /* STM0 is used in this example */IfxStm_CompareConfig g_STMConf; /* STM configuration structure */IFX_ALIGN(4) IfxCpu_syncEvent g_cpuSyncEvent = 0;/* Macro to define Interrupt Service Routine.* This macro makes following definitions:* 1) Define linker section as .intvec_tc<vector number>_<interrupt priority>.* 2) define compiler specific attribute for the interrupt functions.* 3) define the Interrupt service routine as ISR function.** IFX_INTERRUPT(isr, vectabNum, priority)* - isr: Name of the ISR function.* - vectabNum: Vector table number.* - priority: Interrupt priority. Refer Usage of Interrupt Macro for more details.*/
IFX_INTERRUPT(isrSTM, 0, ISR_PRIORITY_STM);void isrSTM(void)
{/* Update the compare register value that will trigger the next interrupt and toggle the LED */IfxStm_increaseCompare(STM, g_STMConf.comparator, TIMER_INT_TIME);IfxPort_setPinState(LED, IfxPort_State_toggled);
}void core0_main(void)
{IfxCpu_enableInterrupts();/* !!WATCHDOG0 AND SAFETY WATCHDOG ARE DISABLED HERE!!* Enable the watchdogs and service them periodically if it is required*/IfxScuWdt_disableCpuWatchdog(IfxScuWdt_getCpuWatchdogPassword());IfxScuWdt_disableSafetyWatchdog(IfxScuWdt_getSafetyWatchdogPassword());/* Wait for CPU sync event */IfxCpu_emitEvent(&g_cpuSyncEvent);IfxCpu_waitEvent(&g_cpuSyncEvent, 1);//=================================================================initTime(); /* Initialize time constants *///initLEDIfxPort_setPinMode(LED, IfxPort_Mode_outputPushPullGeneral); /* Initialize LED port pin */IfxPort_setPinState(LED, IfxPort_State_high); /* Turn off LED (LED is low-level active) *///initSTMIfxStm_initCompareConfig(&g_STMConf); /* Initialize the configuration structure with default values */g_STMConf.triggerPriority = ISR_PRIORITY_STM; /* Set the priority of the interrupt */g_STMConf.typeOfService = IfxSrc_Tos_cpu0; /* Set the service provider for the interrupts */g_STMConf.ticks = TIMER_INT_TIME; /* Set the number of ticks after which the timer triggers an* interrupt for the first time */IfxStm_initCompare(STM, &g_STMConf); /* Initialize the STM with the user configuration */while(1){}
}
参考自 STM_Interrupt_1 for KIT_AURIX_TC397_TFT
STM_System_Time
另一个例子是 STM_System_Time_1, 用STM模块得到当前的开机时间(days:hours:minutes:seconds, 从复位开始计数), 储存在一个结构体中:
- 秒数 = 滴答数(ticks) / STIM频率 = IfxStm_get() / IfxStm_getFrequency();
- 用秒数换算天,时,分,秒.
Cpu0_Main.c 代码如下, 用串口0打印出来:
#include "Ifx_Types.h"
#include "IfxCpu.h"
#include "IfxScuWdt.h"#include "Bsp.h"
#include "IfxPort.h"
#include "IfxStm.h"#include "IfxAsclin_Asc.h"
#include "IfxCpu_Irq.h"
#include "Ifx_Console.h"//STM
#define ISR_PRIORITY_STM 40 /* Priority for interrupt ISR */
#define TIMER_INT_TIME (uint32)(TimeConst_100ms * 10) /* Time between interrupts (500 ms) */
#define LED &MODULE_P13,0 /* LED toggled in Interrupt Service Routine (ISR) */
#define STM &MODULE_STM0 /* STM0 is used in this example */
IfxStm_CompareConfig g_STMConf; /* STM configuration structure */#define DAY_IN_SECONDS 86400 /* Define the number of seconds in one day */
#define HOURS_IN_SECONDS 3600 /* Define the number of seconds in one hour */
#define MIN_IN_SECONDS 60 /* Define the number of seconds in one minute */typedef struct
{uint64 totalSeconds; /* Total seconds since the last reset of the microcontroller */uint64 days; /* Number of days */uint64 hours; /* Number of hours */uint64 minutes; /* Number of minutes */uint64 seconds; /* Number of seconds */
} systemTime;
systemTime g_time; /* Instance of the structure time to store the system time *///UART
#define SERIAL_BAUDRATE0 115200
#define SERIAL_PIN_RX0 IfxAsclin0_RXA_P14_1_IN
#define SERIAL_PIN_TX0 IfxAsclin0_TX_P14_0_OUT
#define INTPRIO_ASCLIN0_TX 19 /* Priority of the ISR */
#define ASC_TX_BUFFER_SIZE 64
/* The transfer buffers allocate memory for the data itself and for FIFO runtime variables.* 8 more bytes have to be added to ensure a proper circular buffer handling independent from* the address to which the buffers have been located.*/
uint8 g_ascTxBuffer[ASC_TX_BUFFER_SIZE + sizeof(Ifx_Fifo) + 8];
IfxAsclin_Asc g_asc0;
IfxStdIf_DPipe g_ascStandardInterface; /* Standard interface object */IFX_ALIGN(4) IfxCpu_syncEvent g_cpuSyncEvent = 0;/* Macro to define Interrupt Service Routine.* This macro makes following definitions:* 1) Define linker section as .intvec_tc<vector number>_<interrupt priority>.* 2) define compiler specific attribute for the interrupt functions.* 3) define the Interrupt service routine as ISR function.** IFX_INTERRUPT(isr, vectabNum, priority)* - isr: Name of the ISR function.* - vectabNum: Vector table number.* - priority: Interrupt priority. Refer Usage of Interrupt Macro for more details.*/
IFX_INTERRUPT(isrSTM, 0, ISR_PRIORITY_STM);
static uint8 STM_INT_State = 0;
void isrSTM(void)
{/* Update the compare register value that will trigger the next interrupt and toggle the LED */IfxStm_increaseCompare(STM, g_STMConf.comparator, TIMER_INT_TIME);STM_INT_State = 1;
}IFX_INTERRUPT(asclin0TxISR, 0, INTPRIO_ASCLIN0_TX); /* Adding the Interrupt Service Routine */void asclin0TxISR(void)
{IfxAsclin_Asc_isrTransmit(&g_asc0);
}void core0_main(void)
{IfxCpu_enableInterrupts();/* !!WATCHDOG0 AND SAFETY WATCHDOG ARE DISABLED HERE!!* Enable the watchdogs and service them periodically if it is required*/IfxScuWdt_disableCpuWatchdog(IfxScuWdt_getCpuWatchdogPassword());IfxScuWdt_disableSafetyWatchdog(IfxScuWdt_getSafetyWatchdogPassword());/* Wait for CPU sync event */IfxCpu_emitEvent(&g_cpuSyncEvent);IfxCpu_waitEvent(&g_cpuSyncEvent, 1);//=================================================================initTime(); /* Initialize time constants *///initLEDIfxPort_setPinMode(LED, IfxPort_Mode_outputPushPullGeneral); /* Initialize LED port pin */IfxPort_setPinState(LED, IfxPort_State_high); /* Turn off LED (LED is low-level active) *///initSTMIfxStm_initCompareConfig(&g_STMConf); /* Initialize the configuration structure with default values */g_STMConf.triggerPriority = ISR_PRIORITY_STM; /* Set the priority of the interrupt */g_STMConf.typeOfService = IfxSrc_Tos_cpu0; /* Set the service provider for the interrupts */g_STMConf.ticks = TIMER_INT_TIME; /* Set the number of ticks after which the timer triggers an* interrupt for the first time */IfxStm_initCompare(STM, &g_STMConf); /* Initialize the STM with the user configuration *///initUART0/* Initialize an instance of IfxAsclin_Asc_Config with default values */IfxAsclin_Asc_Config ascConfig;IfxAsclin_Asc_initModuleConfig(&ascConfig, SERIAL_PIN_TX0.module);/* Set the desired baud rate */ascConfig.baudrate.baudrate = SERIAL_BAUDRATE0;/* ISR priorities and interrupt target */ascConfig.interrupt.txPriority = INTPRIO_ASCLIN0_TX;ascConfig.interrupt.typeOfService = IfxCpu_Irq_getTos(IfxCpu_getCoreIndex());/* FIFO configuration */ascConfig.txBuffer = &g_ascTxBuffer;ascConfig.txBufferSize = ASC_TX_BUFFER_SIZE;/* Port pins configuration */const IfxAsclin_Asc_Pins pins ={NULL_PTR, IfxPort_InputMode_pullUp, /* CTS pin not used */&SERIAL_PIN_RX0, IfxPort_InputMode_pullUp, /* RX pin not used */NULL_PTR, IfxPort_OutputMode_pushPull, /* RTS pin not used */&SERIAL_PIN_TX0, IfxPort_OutputMode_pushPull, /* TX pin */IfxPort_PadDriver_cmosAutomotiveSpeed1};ascConfig.pins = &pins;/* Initialize module with above parameters */IfxAsclin_Asc_initModule(&g_asc0, &ascConfig);/* Initialize the Standard Interface */IfxAsclin_Asc_stdIfDPipeInit(&g_ascStandardInterface, &g_asc0);/* Initialize the Console */Ifx_Console_init(&g_ascStandardInterface);while(1){if(STM_INT_State) {STM_INT_State = 0;IfxPort_setPinState(LED, IfxPort_State_toggled);/* Get the system time (since the last reset of the microcontroller) in seconds */g_time.totalSeconds = IfxStm_get(&MODULE_STM0) / IfxStm_getFrequency(&MODULE_STM0);/* Calculate the number of days */g_time.days = g_time.totalSeconds / DAY_IN_SECONDS;/* Calculate the number of hours */g_time.hours = (g_time.totalSeconds - (g_time.days * DAY_IN_SECONDS)) / HOURS_IN_SECONDS;/* Calculate the number of minutes */g_time.minutes = (g_time.totalSeconds - (g_time.days * DAY_IN_SECONDS) - (g_time.hours * HOURS_IN_SECONDS)) / MIN_IN_SECONDS;/* Calculate the number of seconds */g_time.seconds = (g_time.totalSeconds - (g_time.days * DAY_IN_SECONDS) - (g_time.hours * HOURS_IN_SECONDS) - (g_time.minutes * MIN_IN_SECONDS));//第二个开始居然都是0...//Ifx_Console_print("totalSeconds %d, Day %d, H:M:S %d:%d:%d\n\r", g_time.totalSeconds, g_time.days, g_time.hours, g_time.minutes, g_time.seconds);Ifx_Console_print("\n\r");Ifx_Console_print("totalSeconds: %d\n\r", g_time.totalSeconds);Ifx_Console_print("days: %d\n\r", g_time.days);Ifx_Console_print("hours: %d\n\r", g_time.hours);Ifx_Console_print("minutes: %d\n\r", g_time.minutes);Ifx_Console_print("seconds: %d\n\r", g_time.seconds);Ifx_Console_print("\n\r");}}
}

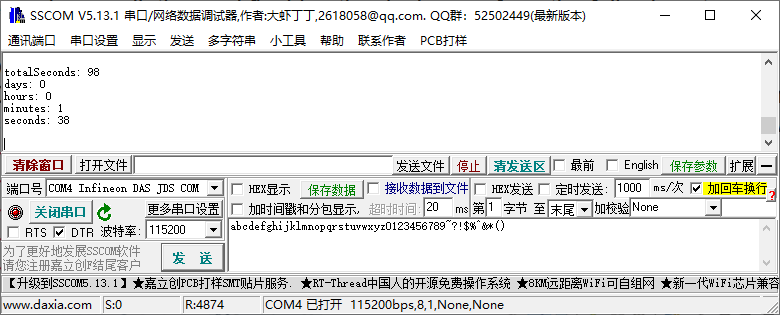

运行结果如下:
GTM_ATOM_PWM
GTM_ATOM_PWM_1 给出了一个 GTM ATOM 产生PWM驱动LED明暗的例子.
Cpu0_Main.c 代码如下:
#include "Ifx_Types.h"
#include "IfxCpu.h"
#include "IfxScuWdt.h"#include "Bsp.h"
#include "Ifx_Types.h"
#include "IfxGtm_Atom_Pwm.h"IFX_ALIGN(4) IfxCpu_syncEvent g_cpuSyncEvent = 0;#define ISR_PRIORITY_ATOM 20 /* Interrupt priority number */
#define LED IfxGtm_ATOM2_5_TOUT91_P13_0_OUT /* LED which will be driven by the PWM */
#define CLK_FREQ 1000000.0f /* CMU clock frequency, in Hertz */
#define PWM_PERIOD 5000 /* PWM period for the ATOM, in ticks */
#define FADE_STEP PWM_PERIOD / 100 /* PWM duty cycle for the ATOM *///Period = Fclk0 / Fpwm = 1MHz / 200Hz = 5000 ticksIfxGtm_Atom_Pwm_Config g_atomConfig; /* Timer configuration structure */
IfxGtm_Atom_Pwm_Driver g_atomDriver; /* Timer Driver structure */
uint32 g_fadeValue = 0; /* Initialization of the fade value */
sint8 g_fadeDir = 1; /* Initialization of the fade direction variable */void core0_main(void)
{IfxCpu_enableInterrupts();/* !!WATCHDOG0 AND SAFETY WATCHDOG ARE DISABLED HERE!!* Enable the watchdogs and service them periodically if it is required*/IfxScuWdt_disableCpuWatchdog(IfxScuWdt_getCpuWatchdogPassword());IfxScuWdt_disableSafetyWatchdog(IfxScuWdt_getSafetyWatchdogPassword());/* Wait for CPU sync event */IfxCpu_emitEvent(&g_cpuSyncEvent);IfxCpu_waitEvent(&g_cpuSyncEvent, 1);initTime(); /* Calculate iLLDs time constants *///initGtmAtomPwmIfxGtm_enable(&MODULE_GTM); /* Enable GTM */IfxGtm_Cmu_setClkFrequency(&MODULE_GTM, IfxGtm_Cmu_Clk_0, CLK_FREQ); /* Set the CMU clock 0 frequency */IfxGtm_Cmu_enableClocks(&MODULE_GTM, IFXGTM_CMU_CLKEN_CLK0); /* Enable the CMU clock 0 */IfxGtm_Atom_Pwm_initConfig(&g_atomConfig, &MODULE_GTM); /* Initialize default parameters */g_atomConfig.atom = LED.atom; /* Select the ATOM depending on the LED */g_atomConfig.atomChannel = LED.channel; /* Select the channel depending on the LED */g_atomConfig.period = PWM_PERIOD; /* Set timer period */g_atomConfig.pin.outputPin = &LED; /* Set LED as output */g_atomConfig.synchronousUpdateEnabled = TRUE; /* Enable synchronous update */IfxGtm_Atom_Pwm_init(&g_atomDriver, &g_atomConfig); /* Initialize the PWM */IfxGtm_Atom_Pwm_start(&g_atomDriver, TRUE); /* Start the PWM */while(1){if(g_fadeValue >= PWM_PERIOD){g_fadeDir = -1; /* Set the direction of the fading */}else if(g_fadeValue <= 0){g_fadeDir = 1; /* Set the direction of the fading */}/* Calculation of the new duty cycle */g_fadeValue += g_fadeDir * FADE_STEP;/* Set the calculated duty cycle */g_atomConfig.dutyCycle = g_fadeValue; /* Set duty cycle */IfxGtm_Atom_Pwm_init(&g_atomDriver, &g_atomConfig); /* Re-initialize the PWM */waitTime(TimeConst_10ms * 3);}
}
运行, LED 明 -> 暗 -> 明 -> 暗 交替变化.
其中:
- ARU连接的定时器输出模块(ATOM, GTM的一部分), 能够产生复杂的输出信号, TC397的ATOM有12x8 ch. (ATOM0-11), 意味着至少可以输出96路PWM? 这里用ATOM2的通道5输出PWM连到LED(P13.0):
IfxGtm_ATOM2_5_TOUT91_P13_0_OUT, 其它可用PWM输出引脚见这一系列的宏定义 - 时钟管理单元(CMU, Clock Management Unit)负责GTM的时钟生成, 可配置时钟生成子单元(CFGU)提供GTM子模块(TIM, TBU, MON 和 ATOM)的8个时钟源
IfxGtm_Cmu_Clk_0..7
GTM_ATOM_Interrupt
GTM ATOM配置为每500ms触发一次中断, 中断中翻转LED:
- 时钟源: IfxGtm_Cmu_Clk_0, 1MHz,
IfxGtm_Cmu_Clk_0…7 - 通道: ATOM0的通道0,
这就相当于12x8个定时器? - 中断频率: 2Hz, 也就是500ms中断一次
#include "Ifx_Types.h"
#include "IfxCpu.h"
#include "IfxScuWdt.h"#include "IfxGtm_Atom_Timer.h"IFX_ALIGN(4) IfxCpu_syncEvent g_cpuSyncEvent = 0;#define ISR_PRIORITY_ATOM 1 /* Interrupt priority number */
#define ATOM_FREQ 2.0f /* ATOM frequency */
#define CMU_FREQ 1000000.0f /* CMU clock frequency */
#define LED &MODULE_P13, 0 /* LED which will be toggled in Interrupt Service Routine (ISR) */IfxGtm_Atom_Timer g_timerDriver; /* ATOM driver *//* Macro to define the Interrupt Service Routine */
IFX_INTERRUPT(interruptHandlerGtmAtom, 0, ISR_PRIORITY_ATOM);/* Interrupt Service Routine of the ATOM */
void interruptHandlerGtmAtom(void)
{IfxGtm_Atom_Timer_acknowledgeTimerIrq(&g_timerDriver); /* Reset the timer event */IfxPort_togglePin(LED); /* Toggle the LED */
}void core0_main(void)
{IfxCpu_enableInterrupts();/* !!WATCHDOG0 AND SAFETY WATCHDOG ARE DISABLED HERE!!* Enable the watchdogs and service them periodically if it is required*/IfxScuWdt_disableCpuWatchdog(IfxScuWdt_getCpuWatchdogPassword());IfxScuWdt_disableSafetyWatchdog(IfxScuWdt_getSafetyWatchdogPassword());/* Wait for CPU sync event */IfxCpu_emitEvent(&g_cpuSyncEvent);IfxCpu_waitEvent(&g_cpuSyncEvent, 1);IfxPort_setPinModeOutput(LED, IfxPort_OutputMode_pushPull, IfxPort_OutputIdx_general); /* Set LED pin mode *///initGtmAtomIfxGtm_enable(&MODULE_GTM); /* Enable GTM */IfxGtm_Atom_Timer_Config timerConfig; /* Timer configuration structure */IfxGtm_Atom_Timer_initConfig(&timerConfig, &MODULE_GTM); /* Initialize default parameters */timerConfig.atom = IfxGtm_Atom_0; /* Select the ATOM_0 */timerConfig.timerChannel = IfxGtm_Atom_Ch_0; /* Select channel 0 */timerConfig.clock = IfxGtm_Cmu_Clk_0; /* Select the CMU clock 0 */timerConfig.base.frequency = ATOM_FREQ; /* Set timer frequency */timerConfig.base.isrPriority = ISR_PRIORITY_ATOM; /* Set interrupt priority */timerConfig.base.isrProvider = IfxSrc_Tos_cpu0; /* Set interrupt provider */IfxGtm_Cmu_setClkFrequency(&MODULE_GTM, IfxGtm_Cmu_Clk_0, CMU_FREQ); /* Set the clock frequency */IfxGtm_Cmu_enableClocks(&MODULE_GTM, IFXGTM_CMU_CLKEN_CLK0); /* Enable the CMU clock 0 */IfxGtm_Atom_Timer_init(&g_timerDriver, &timerConfig); /* Initialize the ATOM */IfxGtm_Atom_Timer_run(&g_timerDriver); /* Start the ATOM */while(1){}
}
GTM_TOM_PWM
GTM除了ATOM子模块外, TOM也可以产生PWM, 参考下一小节.
GTM_TIM_Capture
上面用的是GTM的ATOM(共12x8ch)输出PWM, 这里用GTM的TOM(Timer Output Module, 6x16 ch, TOM0-5)子模块输出PWM(P02.3引脚), 然后用TIM(The Timer Input Module, 8x8 ch, TIM0-7)子模块(输入端口设置为P02.0引脚)捕获这个PWM信号, 计算频率和占空比:
- CMU负责GTM的时钟产生, FXU是CMU的一个子单元, 100MHz? 提供5个预设时钟给GTM模块, 这里给TOM,
IfxGtm_Tom_Ch_ClkSrc_cmuFxclk1表示16分频, 也就是时钟源是 6.25MHz, Fpwm = Ffxclk1 / Period = 6.25MHz / 50000(ticks) = 125Hz => 8ms, 输出引脚P02.3(如果想用P13.0的LED, 就define为IfxGtm_TOM2_5_TOUT91_P13_0_OUT) - 需要用杜邦线短接P02.3和P02.0引脚
Cpu0_Main.c 代码如下:
#include "Ifx_Types.h"
#include "IfxCpu.h"
#include "IfxScuWdt.h"#include "Bsp.h"
#include "Ifx_Types.h"
#include "IfxGtm_Tim_In.h"
#include "IfxGtm_Tom_Pwm.h"#include <stdio.h>#define PWM_OUT IfxGtm_TOM0_11_TOUT3_P02_3_OUT /* Port pin which is driven by the PWM */
#define PWM_IN IfxGtm_TIM0_0_P02_0_IN /* Input port pin for the PWM signal */
#define PWM_PERIOD 50000 /* PWM signal period for the TOM */
#define DUTY_CYCLE PWM_PERIOD / 2 /* PWM signal duty cycle for the TOM */float32 g_measuredPwmDutyCycle = 0.0; /* Global variable for duty cycle of generated PWM signal */
float32 g_measuredPwmFreq_Hz = 0.0; /* Global variable for frequency calculation of PWM signal */
float32 g_measuredPwmPeriod = 0.0; /* Global variable for period calculation of PWM signal */
IfxGtm_Tim_In g_driverTIM; /* TIM driver structure */
boolean g_dataCoherent = FALSE; /* Boolean to know if the measured data is coherent */IFX_ALIGN(4) IfxCpu_syncEvent g_cpuSyncEvent = 0;void core0_main(void)
{IfxCpu_enableInterrupts();/* !!WATCHDOG0 AND SAFETY WATCHDOG ARE DISABLED HERE!!* Enable the watchdogs and service them periodically if it is required*/IfxScuWdt_disableCpuWatchdog(IfxScuWdt_getCpuWatchdogPassword());IfxScuWdt_disableSafetyWatchdog(IfxScuWdt_getSafetyWatchdogPassword());/* Wait for CPU sync event */IfxCpu_emitEvent(&g_cpuSyncEvent);IfxCpu_waitEvent(&g_cpuSyncEvent, 1);initTime(); /* Initialize time constants */IfxGtm_enable(&MODULE_GTM); /* Enable the GTM *///init_TIMIfxGtm_Cmu_enableClocks(&MODULE_GTM, IFXGTM_CMU_CLKEN_CLK0); /* Enable the CMU clock 0 */IfxGtm_Tim_In_Config configTIM;IfxGtm_Tim_In_initConfig(&configTIM, &MODULE_GTM); /* Initialize default parameters */configTIM.filter.inputPin = &PWM_IN; /* Select input port pin */configTIM.filter.inputPinMode = IfxPort_InputMode_pullDown; /* Select input port pin mode */IfxGtm_Tim_In_init(&g_driverTIM, &configTIM); /* Initialize the TIM *///generate_PWMIfxGtm_Tom_Pwm_Config tomConfig; /* Timer configuration structure */IfxGtm_Tom_Pwm_Driver tomDriver; /* Timer driver structure */IfxGtm_Cmu_enableClocks(&MODULE_GTM, IFXGTM_CMU_CLKEN_FXCLK); /* Enable the FXU clocks */IfxGtm_Tom_Pwm_initConfig(&tomConfig, &MODULE_GTM); /* Initialize default parameters */tomConfig.tom = PWM_OUT.tom; /* Select the TOM */tomConfig.tomChannel = PWM_OUT.channel; /* Select the channel */tomConfig.period = PWM_PERIOD; /* Set timer period */tomConfig.dutyCycle = DUTY_CYCLE; /* Set the duty cycle */tomConfig.pin.outputPin = &PWM_OUT; /* Set the pin as output */tomConfig.synchronousUpdateEnabled = TRUE; /* Enable synchronous update */tomConfig.clock = IfxGtm_Tom_Ch_ClkSrc_cmuFxclk1; /* Select the FXU clock 1 */IfxGtm_Tom_Pwm_init(&tomDriver, &tomConfig); /* Initialize the module */IfxGtm_Tom_Pwm_start(&tomDriver, TRUE); /* Start the generation of the PWM signal */waitTime(TimeConst_100ms); /* Wait 100 ms */while(1){//measure_PWMIfxGtm_Tim_In_update(&g_driverTIM); /* Update the measured data */g_measuredPwmPeriod = IfxGtm_Tim_In_getPeriodSecond(&g_driverTIM); /* Get the period of the PWM signal */g_measuredPwmFreq_Hz = 1 / g_measuredPwmPeriod; /* Calculate the frequency */g_measuredPwmDutyCycle = IfxGtm_Tim_In_getDutyPercent(&g_driverTIM, &g_dataCoherent); /* Get the duty cycle */printf("%.4f, %.2f, %.2f\n\r", g_measuredPwmPeriod, g_measuredPwmFreq_Hz, g_measuredPwmDutyCycle);//Change PWM Period(Freq), Duty_Cycle//tomConfig.period = PWM_PERIOD; /* Set timer period *///tomConfig.dutyCycle = DUTY_CYCLE; /* Set the duty cycle *///IfxGtm_Tom_Pwm_init(&tomDriver, &tomConfig);waitTime(TimeConst_1s); /* Wait 1s */}
}
调试运行结果如下, 周期0.008s, 频率125Hz, 占空比50%:
